Contact UsHigh-speed High-precision Vertical Machining Center Series

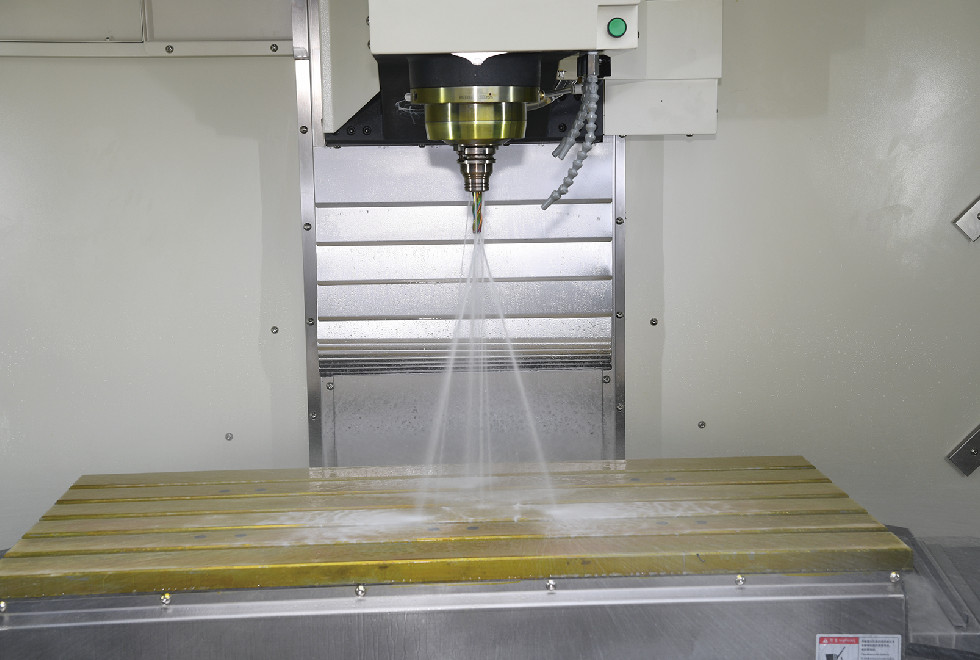

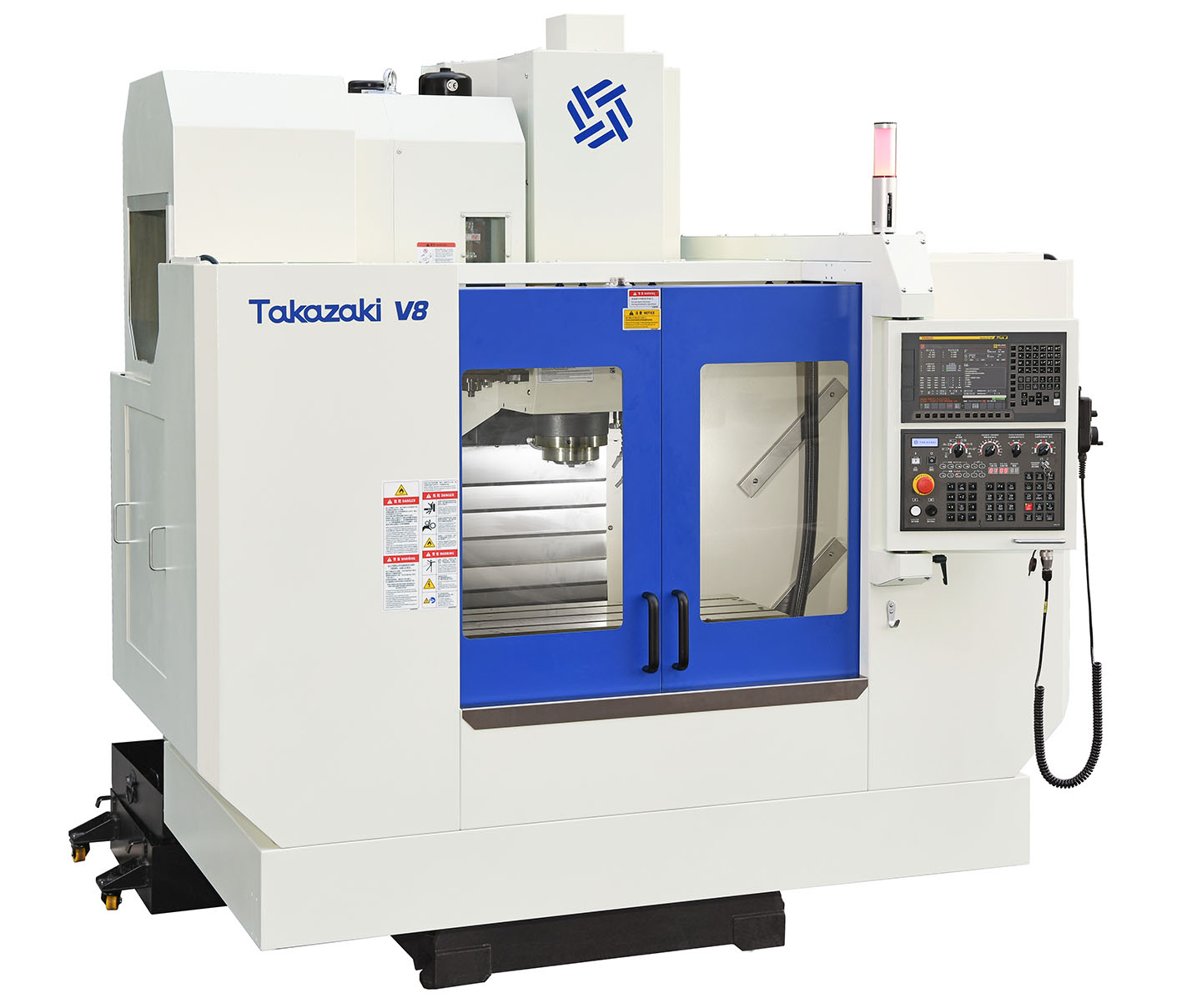

High speed and high-precision vertical machining center series: V8 V9 V11 V13
Product Features
Fast moving speed: 48M/Min
Triaxial acceleration: 0.6G
Three axis servo motor torque: 18/18/28Nm

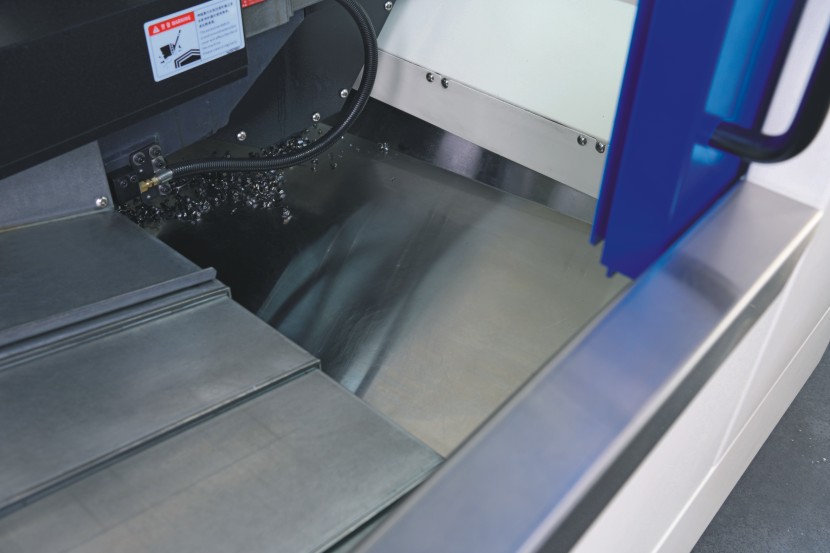

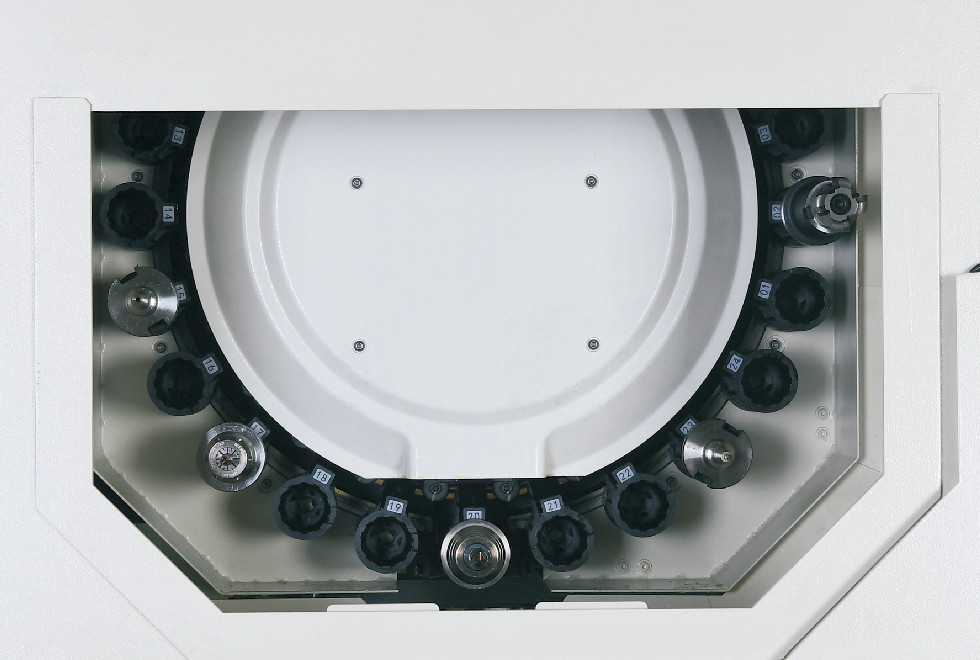

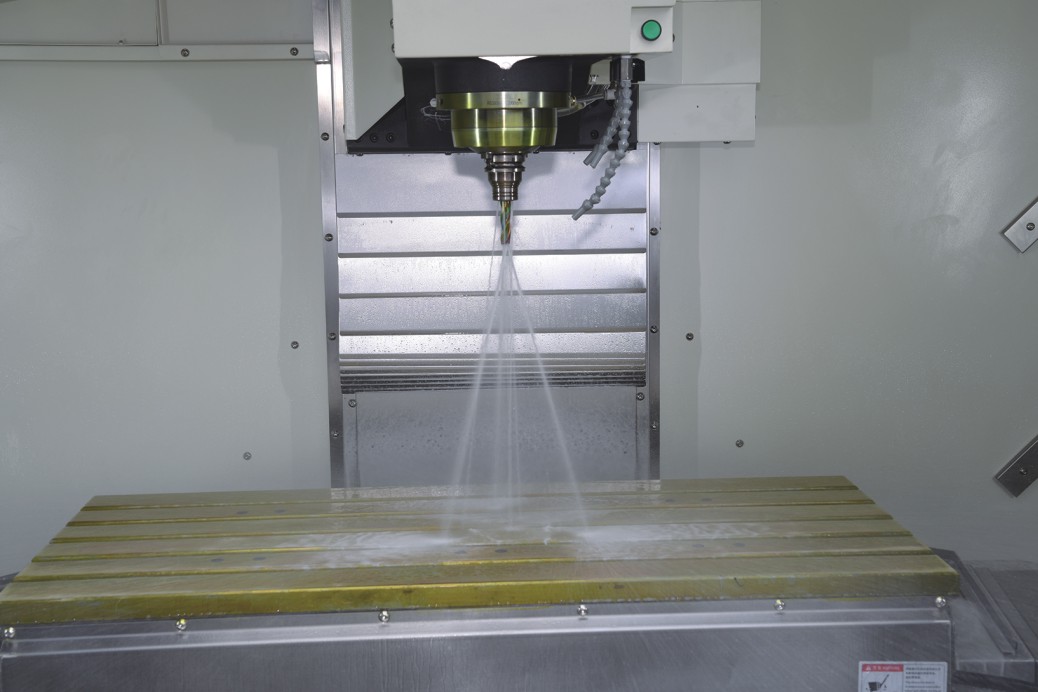

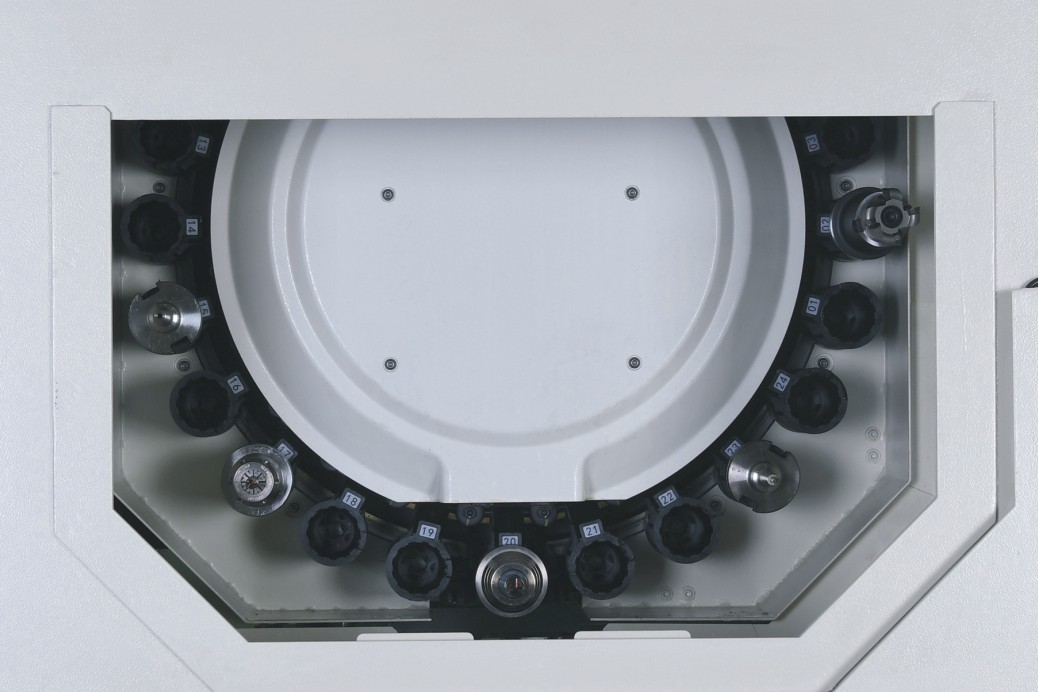

24T quick tool magazine
Three axis: φ 40-C3 grade screw
Three axis: 35-45-45-P grade track
Air circuit components: Japan SMC
Electrical components: Schneider from France
yle="width:100%; text-align:center; border-collapse:collapse;">
| yle="font-weight:bold;"> Item | yle="font-weight:bold;"> Unit | yle="font-weight:bold;"> V8 | yle="font-weight:bold;"> V9 | yle="font-weight:bold;"> V11 | yle="font-weight:bold;"> V13 |
| Worktable Size | mm | 1100*430 | 1100*520 | 1300*600 | 1500*650 |
| Processing Range | mm | 800*450 | 900*560 | 1100*600 | 1300*700 |
| T-slot Size (Center Distance X Slot Width X Number of Slots) | mm | 125*18*3 | 100*18*5 | 100*18*5 | 100*18*5 |
| Worktable Load Capacity | kg | 500 | 800 | 800 | 1200 |
| X/Y/Z Axis Stroke | mm | 800/450/550 | 900/560/600 | 1100/600/600 | 1300/700/600 |
| Distance from Spindle Nose to Worktable Surface | mm | 150-700 | 150-750 | 150-750 | 150-750 (300-900) |
| Distance from Spindle Center to Guideway Surface | mm | 455 | 570 | 605 | 705 |
| Spindle Taper | - | No.40 (7:24) | No.40 (7:24) | No.40 (7:24) | No.40 (7:24)/BT50 |
| Spindle Speed | rpm |
Standard: 8000 (Optional: 12000 18000) |
Standard: 8000 (Optional: 12000 15000) |
8000 (12000) | 8000 (6000) |
| Spindle Drive Mode | - |
Standard: Belt Drive (Optional: Direct Drive Motorized Spindle) |
Belt Drive (Direct Drive) | Belt Drive (Direct Drive) | Belt Drive (Direct Drive) |
| Optional CNC System | - |
Shindaiwa 22MA 10-inch Mitsubishi M80B FANUC Oi-MF PLUS (3) |
Shindaiwa 22MA 10-inch Mitsubishi M80B FANUC Oi-MF PLUS (3) |
Shindaiwa 22MA 10-inch Mitsubishi M80B FANUC Oi-MF PLUS (3) |
Shindaiwa 22MA 10-inch Mitsubishi M80B FANUC Oi-MF PLUS (3) |
| Spindle Motor Power | KW |
Shindaiwa System Standard: 15 (Shindaiwa Direct Drive: 11) |
FANUC System Standard: 11-15 | Shindaiwa System Standard: 16.5 | 15-18.5 (18.5-22) |
| Continuous Rated Torque | Nm | Shindaiwa System: 52.5 (77.8) | FANUC System: 52.5 | 70 (105) | 95.5 (102) |
| Cutting Feed Rate (X\Y\Z) | m/min | 1~12 | 1~12 | 1~12 | 1~12 |
| Rapid Traverse Rate (X\Y\Z) | m/min | 48/48/36 | 48/48/36 | 48/48/36 | 48/48/36 |
| Positioning Accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 |
| Repeatability Accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 |
| Number of Tools | T | 24 | 24 | 24 | 24 |
| Tool Change Method | - | Disc-type Tool Arm | Disc-type Tool Arm | Disc-type Tool Arm | Disc-type Tool Arm |
| Maximum Tool Diameter | mm | φ80 (φ150) | φ80 (φ150 with Adjacent Space) | φ80 (φ150 with Adjacent Space) | φ80 (φ150 with Adjacent Space) |
| Maximum Tool Length | mm | 300 | 300 | 300 | 300 |
| Maximum Tool Weight | kg | 7 | 7 | 7 | 8 |
| Tool Holder Type and Pull Stud | - | BT40-45° | BT40-45° | BT40-45° | BT40-45° |
| Tool Change Time (T-T) | s | 2 | 2 | 2 | 2.5 |
| Power Requirement | Kva | 15 | 25 | 30 | 35 |
| Machine Weight | kg | 4300 | 5500 | 6200 | 7500 |
| Floor Space (L×W×H) | mm | 2240*2346*2826 | 2500*2700*2900 | 2910*2800*3000 | 3480*3370*3370 |
