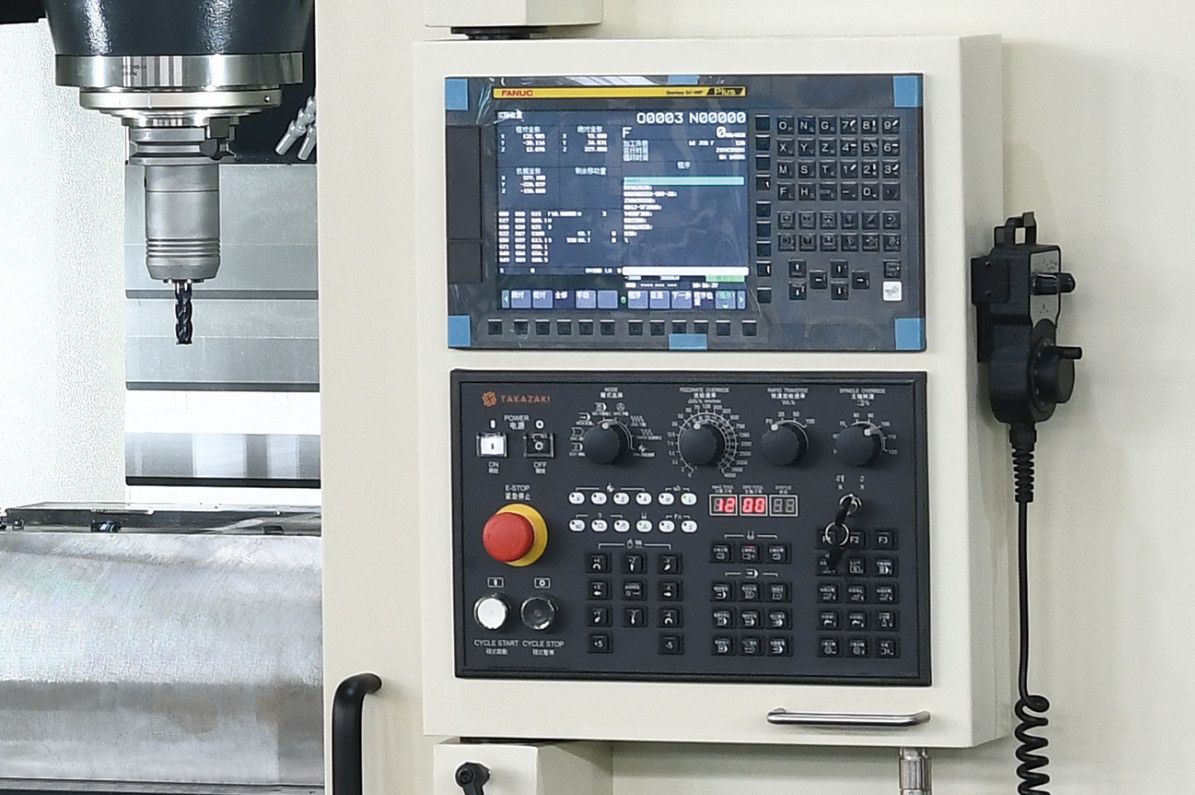

Mold Vertical Machining Center Series: M10
Features
High-precision constant temperature control technology for lead screws
A wide range of tool sizes available: 24T 32T 40T 48T 64T and 80T
Three-axis servo motors with torques of 18/18/28NM
High-rigidity frame design

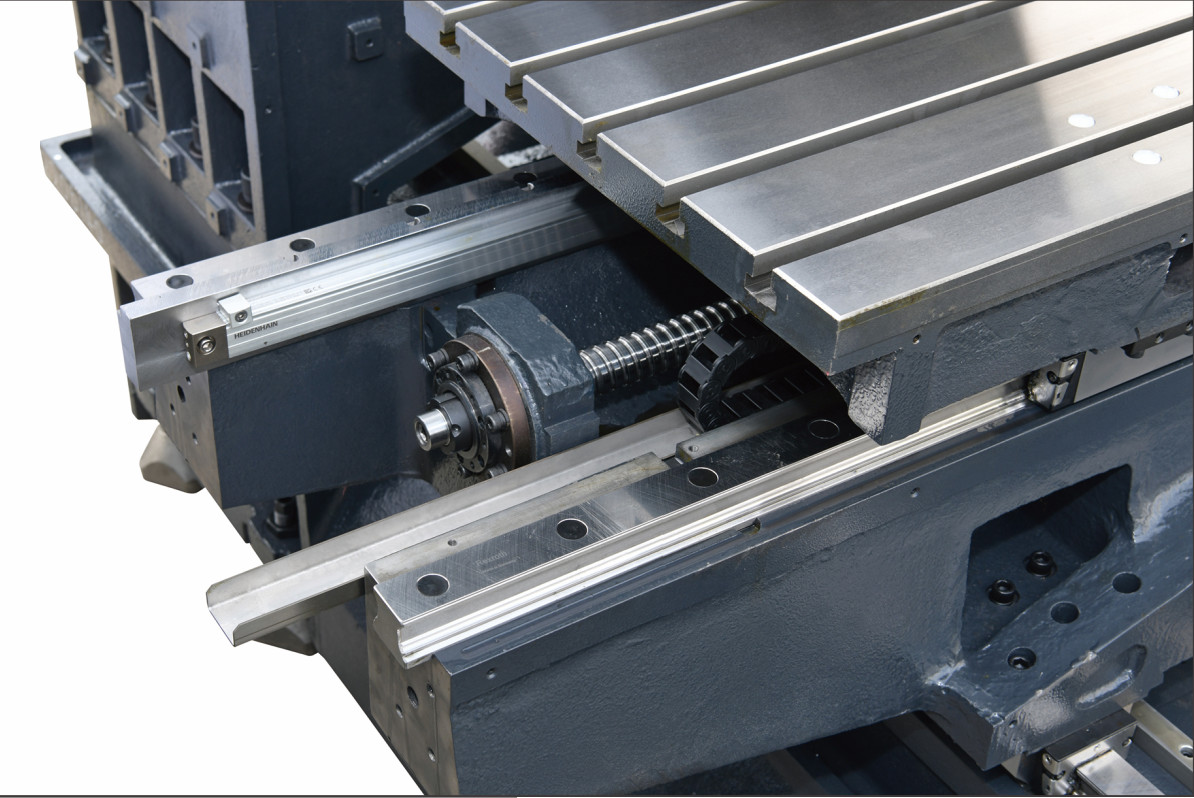

Three-axis pre-tensioning structure
Three-axis 45-roller P-grade or higher guideways
| Item | Unit | M9 |
| Worktable Dimension | mm | 1100*520 |
| Processing Range | mm | 900*560 |
| T-slot Dimension (Center Distance * Slot Width * Number of Slots) | mm | 100*18*5 |
| Maximum Worktable Load Capacity | kg | 700 |
| X/Y/Z Axis Travel | mm | 900/560/600 |
| Distance from Spindle Nose to Worktable Surface | mm | 150-750 |
| Distance from Spindle Center to Z-axis Shield Surface | mm | 565 |
| Spindle Taper Hole | BT40/HSK64A | |
| Spindle Speed | rpm | 8000/12000/15000 |
| Spindle Drive Mode | Belt Type / Direct Drive Type | |
| Spindle Motor (FANUC System) | KW | 11-15 |
| Continuous Rated Torque | N.m | 70/52.5 |
| Cutting Feed Rate (X/Y/Z Axis) | mm/min | 1~16000 |
| Rapid Feed Rate (X/Y/Z Axis) | mm/min | 30000/36000 |
| Positioning Accuracy | mm | ±0.005 |
| Repeat Positioning Accuracy | mm | ±0.003 |
| Number of Tools | T | 24 |
| Tool Change Method | Disc Tool Arm | |
| Maximum Tool Diameter | mm | Φ80 (Φ150) |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 7 |
| Tool Holder Type | BT40-45° | |
| Tool Change Time | s | 2.0 |
| Power Requirement | Kva | 25 |
| Machine Weight | kg | 5500 |
| Floor Space (Length*Width*Height - Including Water Tank) | mm | 2500*2700*2900 |
