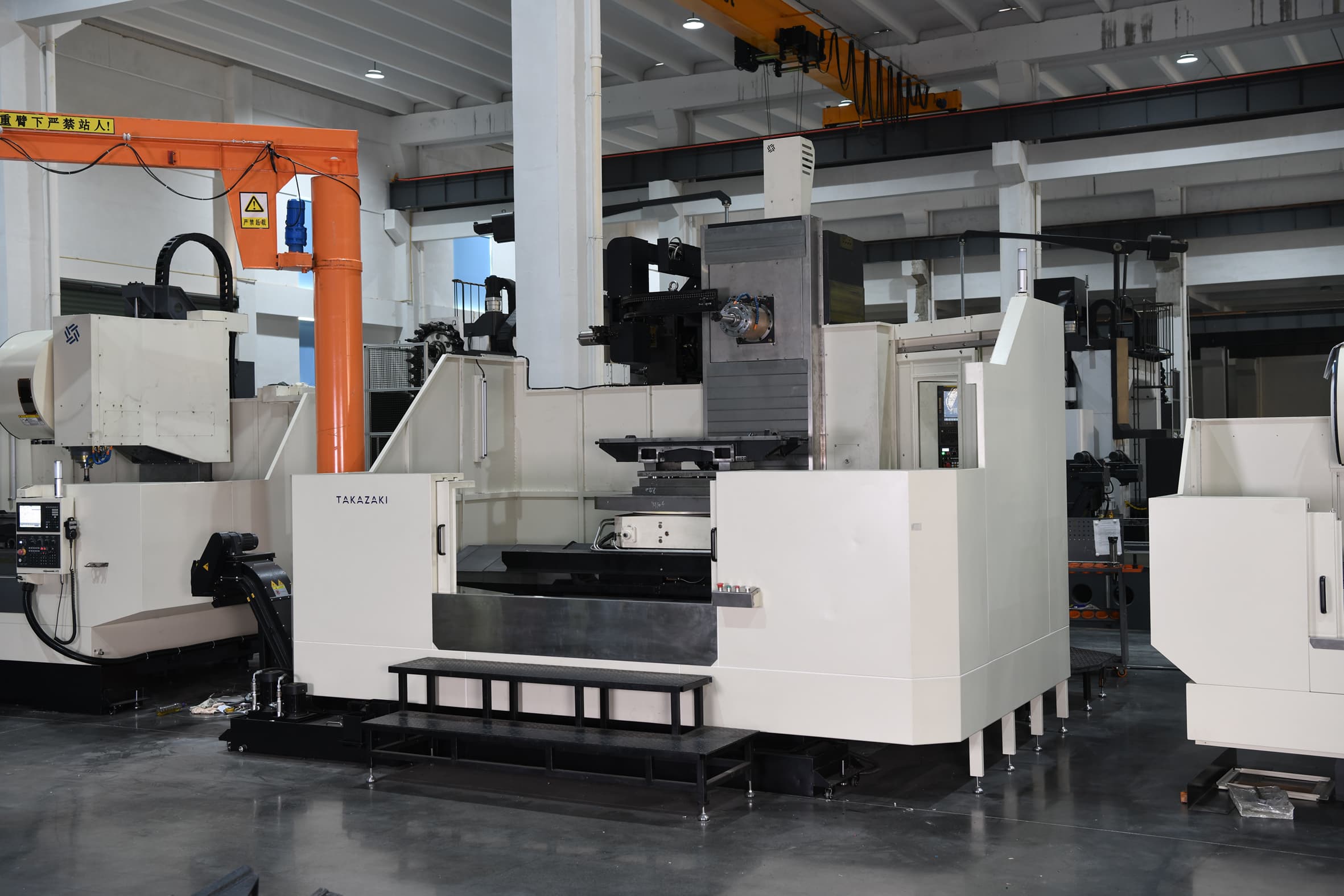

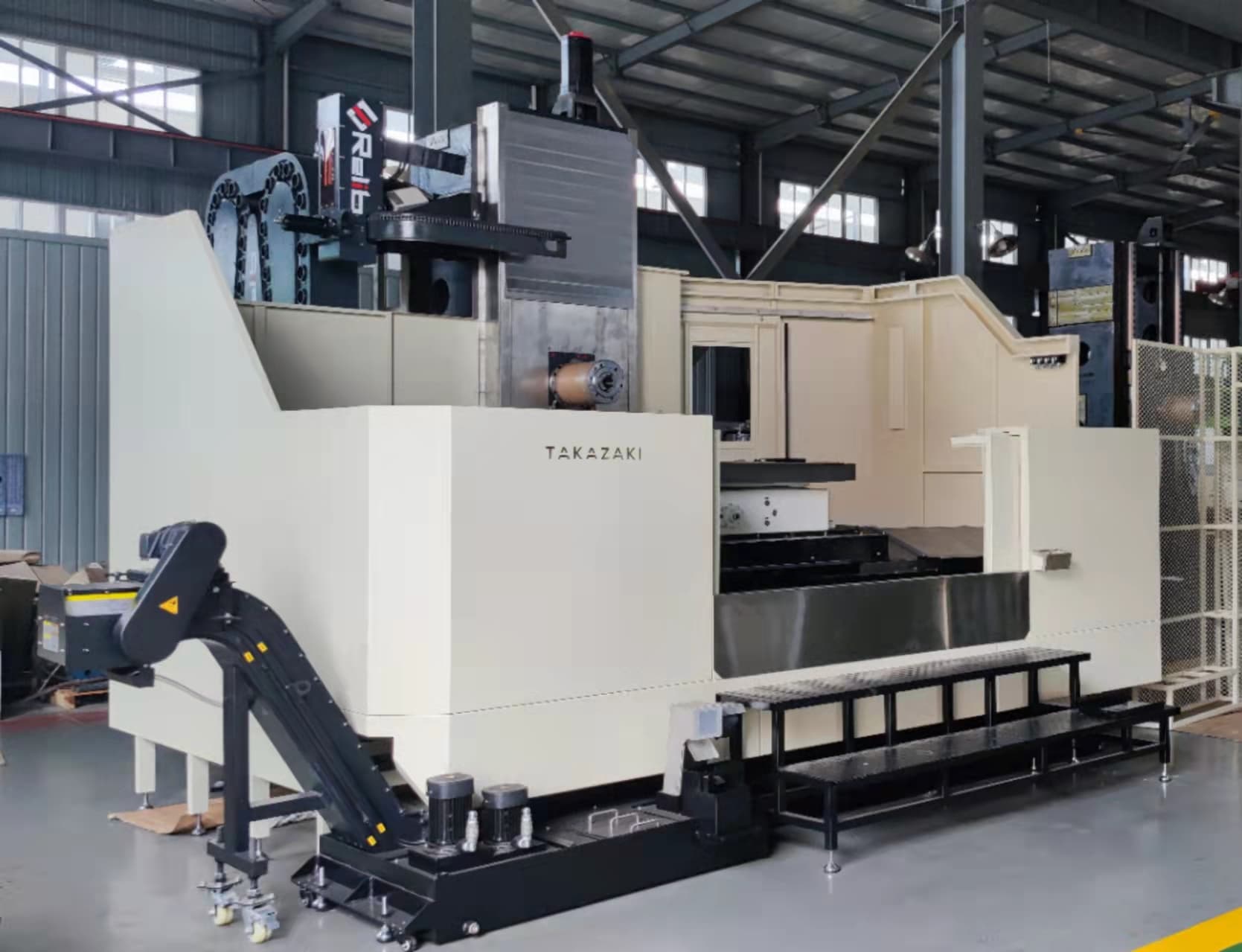

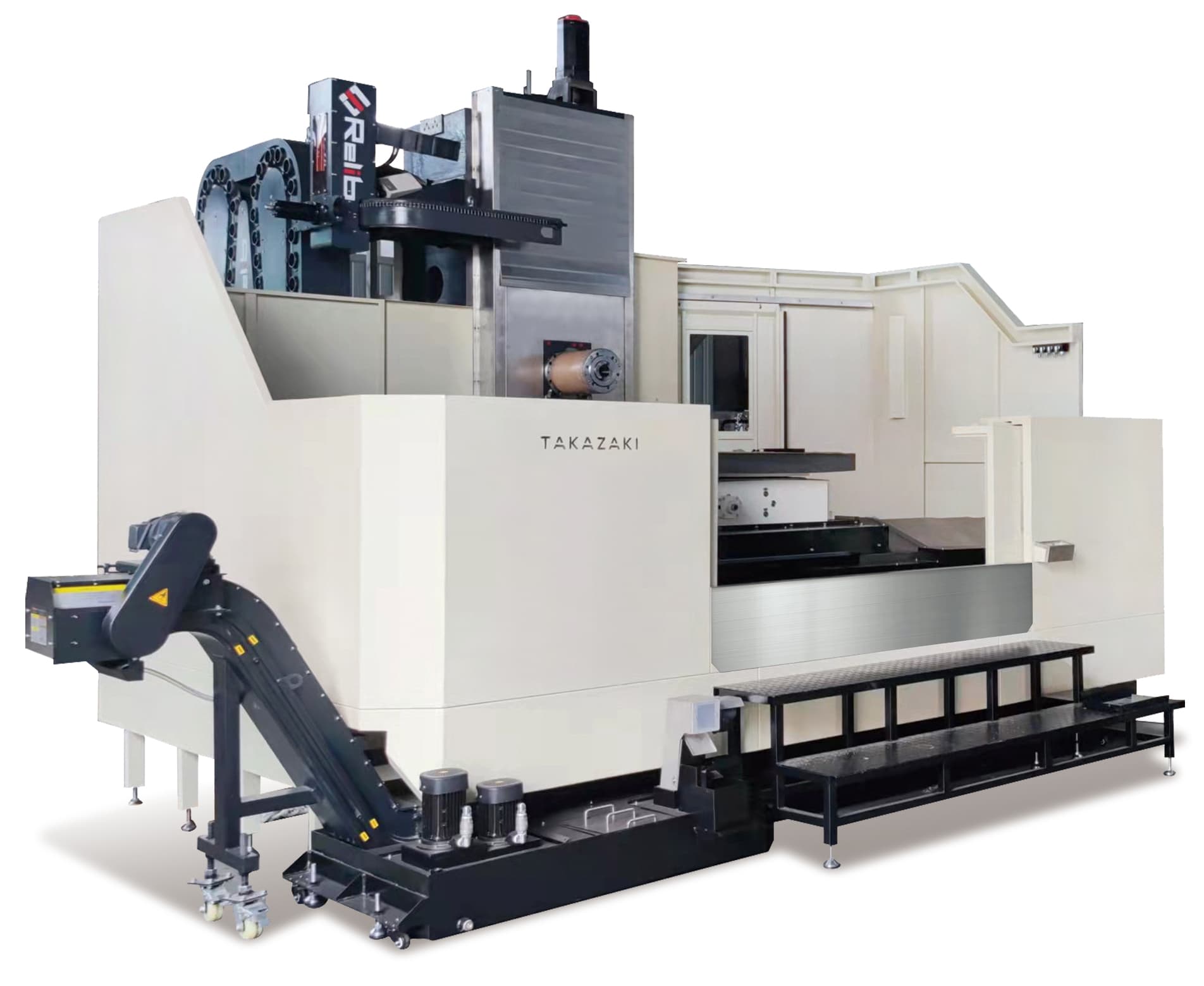

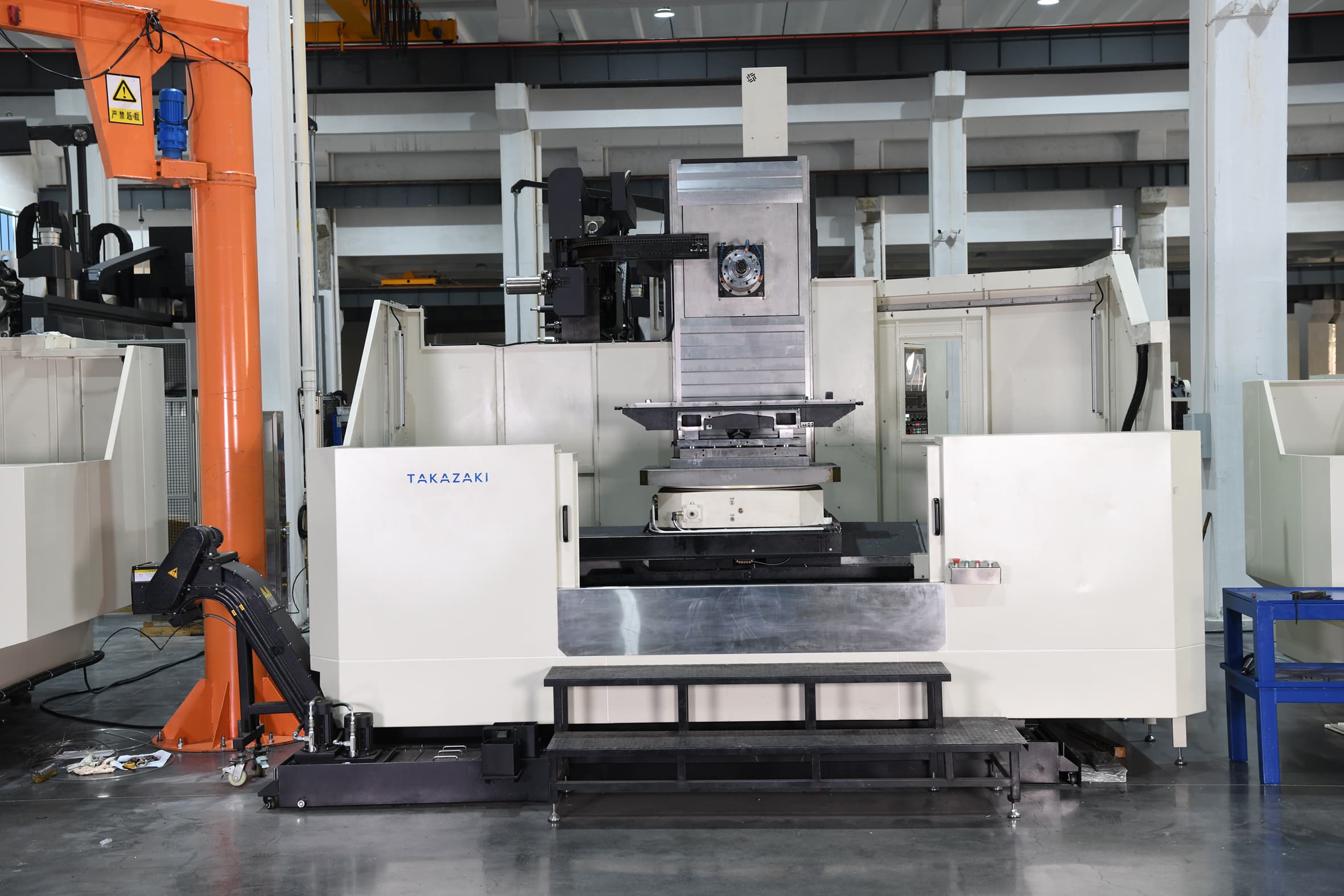

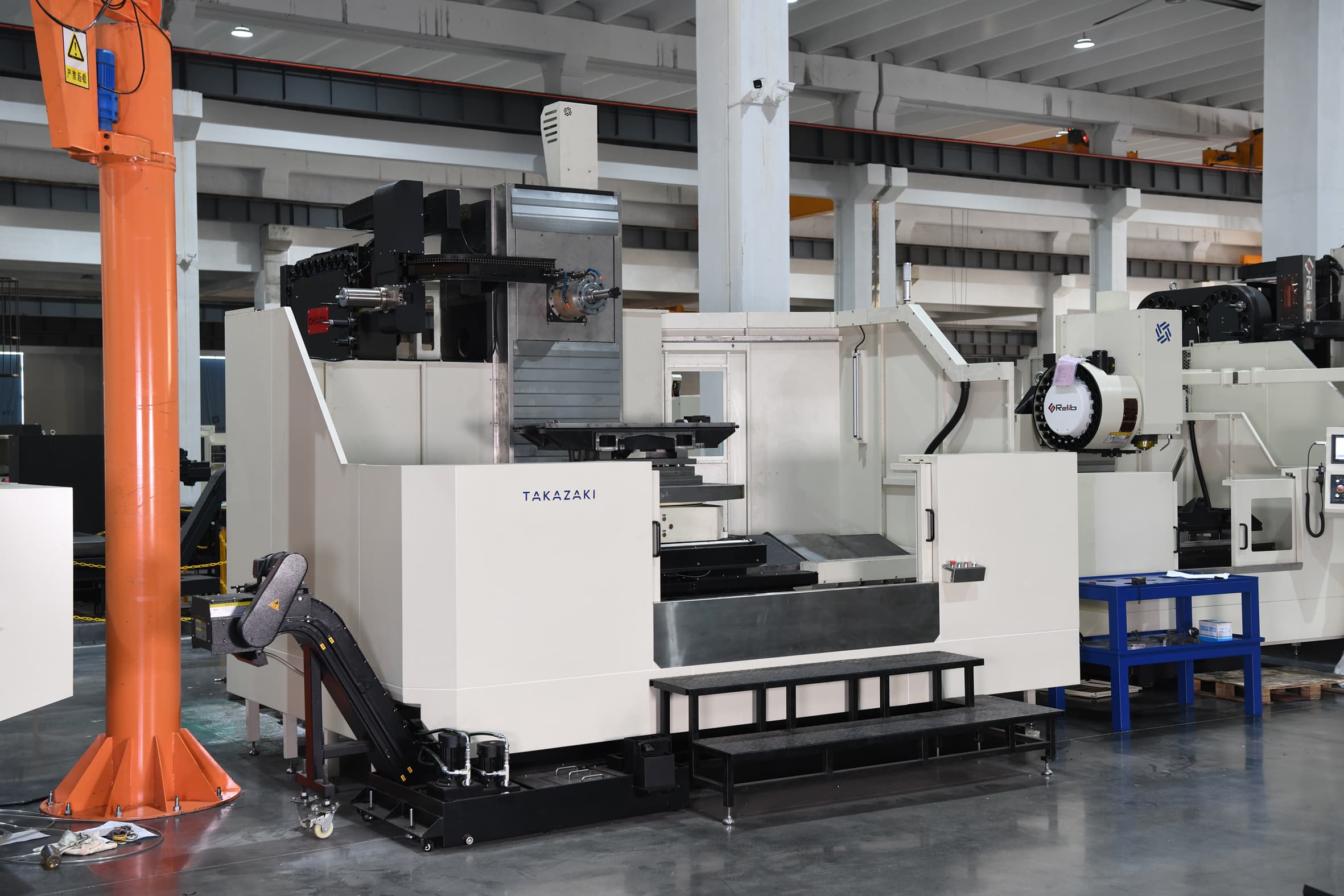

High-Speed Horizontal Machining Series: HS1055B HS1812 HA2110
Product Features
Cross-slide design for high-speed machining
frame design for simplified operation
Open hood design for convenient clamping
Large tool magazine with 40- 60- and 120-ton capacity options
Gearbox with high torque for improved machining efficiency
More rotary table options with 1/4 thousandth or one degree per minute
Optional FANUC Mitsubishi and Siemens options
Standard Japanese SMC air line

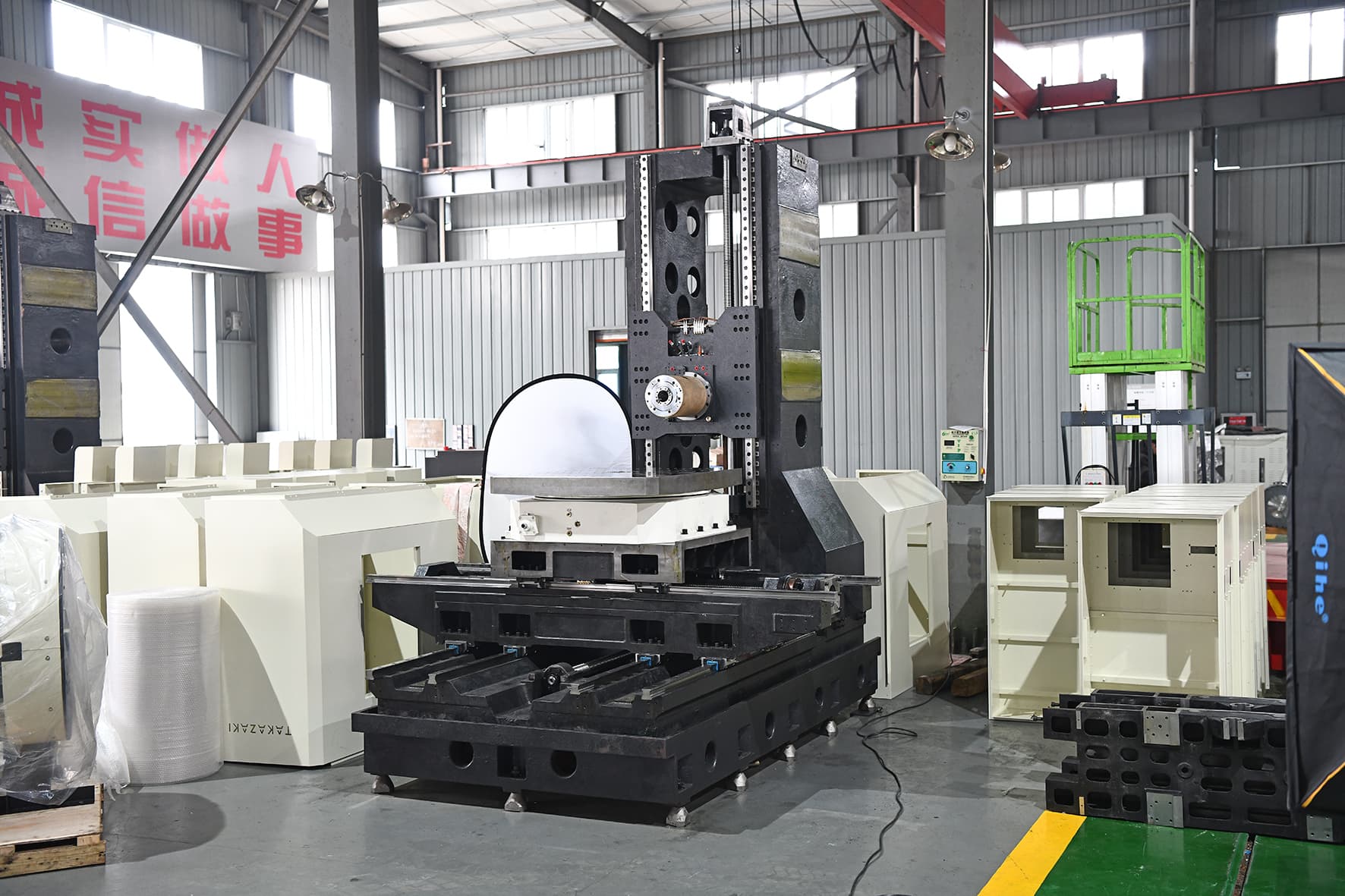

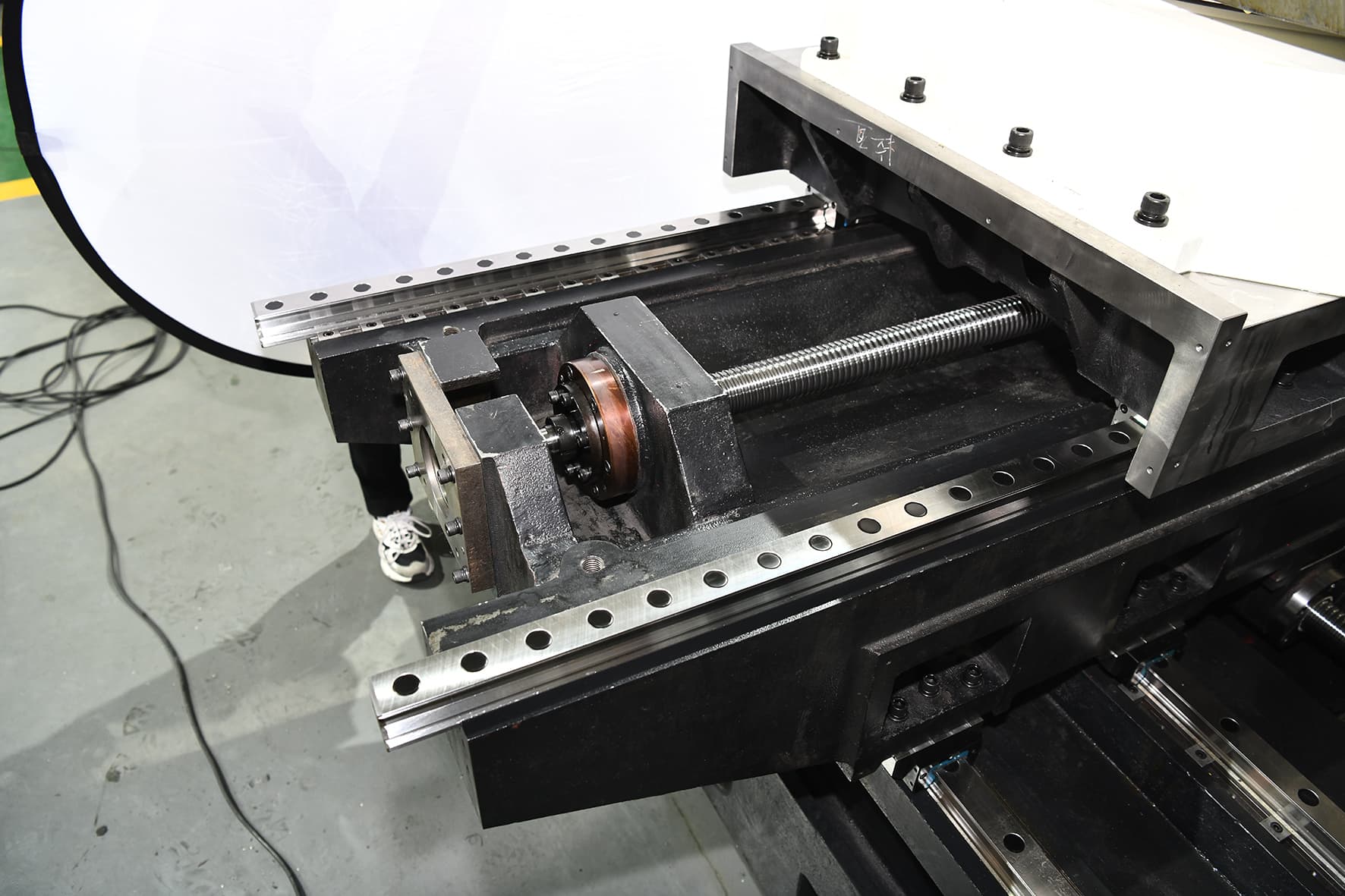

Four high-strength linear guide rails on the Y-axis
| Item | Unit | HS1055B | HS1812 | HS2110 | |
| Worktable | Worktable Dimension (Length X Width) | mm | 500*500 | 1000*1200 | 1000*1000 |
| T-slot (Number of Slots X Slot Width X Slot Pitch) | mm | 5*14*100 | 100*100 (M20*P2.5) | 100*100 (M20*P2.5) | |
| Maximum Worktable Load Capacity | kg | 500 | 3000 | 3000 | |
| Travel | X-axis Travel (Worktable Left-Right Travel) | mm | 800 | 1800 | 2100 |
| Y-axis Travel (Worktable Front-Back Travel) | mm | 550 | 1200 | 1200 | |
| Z-axis Travel (Spindle Up-Down Travel) | mm | 550 | 1200 | 1000 | |
| Distance from Spindle Nose to Worktable Center | mm | 120-670 | 150-1350 | 150-1350 | |
| Distance from Spindle Center to Worktable Surface | mm | 50-600 | 100-1300 | 100-1300 | |
| Spindle | Spindle Taper Hole | BT40 | 7:24 Taper | 7:24 Taper | |
| Drive Mode | Motorized Spindle | Belt Type (Gear Type) | Belt Type (Gear Type) | ||
| Spindle Speed | rpm | 12000 | 6000 | 6000 | |
| Spindle Motor Power | KW | 15 | 22-26 | 22-26 | |
| Feed | X/Y/Z Axis Rapid Traverse Speed | mm/min | 36000 | 18000 | 18000 |
| X/Y/Z Axis Feed Speed | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| Workpiece | Maximum Workpiece Height | mm | 800 | 1800 | 1600 |
| Maximum Workpiece Diameter | mm | 700 | 2200 | 2200 | |
| Tool Magazine | Tool Holder Type | BT40 | BT50 | BT50 | |
| Tool Magazine Capacity | PCS | 24 | 60 | 60 | |
| Tool Magazine Type | Horizontal Arm Type | Horizontal Arm Type | Horizontal Arm Type | ||
| Tool Change Time (T-T) | s | 2.4 | 3.5 | 3.5 | |
| Maximum Tool Diameter | mm | Φ80 (Φ160 with Adjacent Empty Slot) | Φ125 (Φ250 with Adjacent Empty Slot) | Φ125 (Φ250 with Adjacent Empty Slot) | |
| Maximum Tool Length | mm | 300 | 600 | 600 | |
| Maximum Tool Weight | kg | 15 (for Unbalanced Tool) | 10 (15 for Unbalanced Tool) | 10 (15 for Unbalanced Tool) | |
| Accuracy | Linear Axis Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 |
| Linear Axis Repeat Positioning Accuracy | mm | ±0.005 | ±0.005 | ±0.005 | |
| Rotary Axis Indexing Accuracy | arc.sec | ±10 | ±10 | ±10 | |
| Rotary Axis Repeat Positioning Accuracy | arc.sec | 2 | 2 | 2 | |
| Others | Control System | Syntec | FANUC series Oi-MF (PLUS) | FANUC series Oi-MF (PLUS) | |
| Power Capacity | Kva | 25 | 50 | 50 | |
| Machine Dimension (Length*Width*Height) | mm | 4500*3400*2950 | 5800*5800*4300 | 5600*6200*4300 | |
| Machine Weight | kg | 6800 | 21000 | 24000 |
