Contact UsHeavy-duty high-precision vertical machining center series
Heavy-Duty High-Precision Vertical Machining Center Series: P-1055 P-1160 P-1160s P-1370 P-1690 P-1890
Features

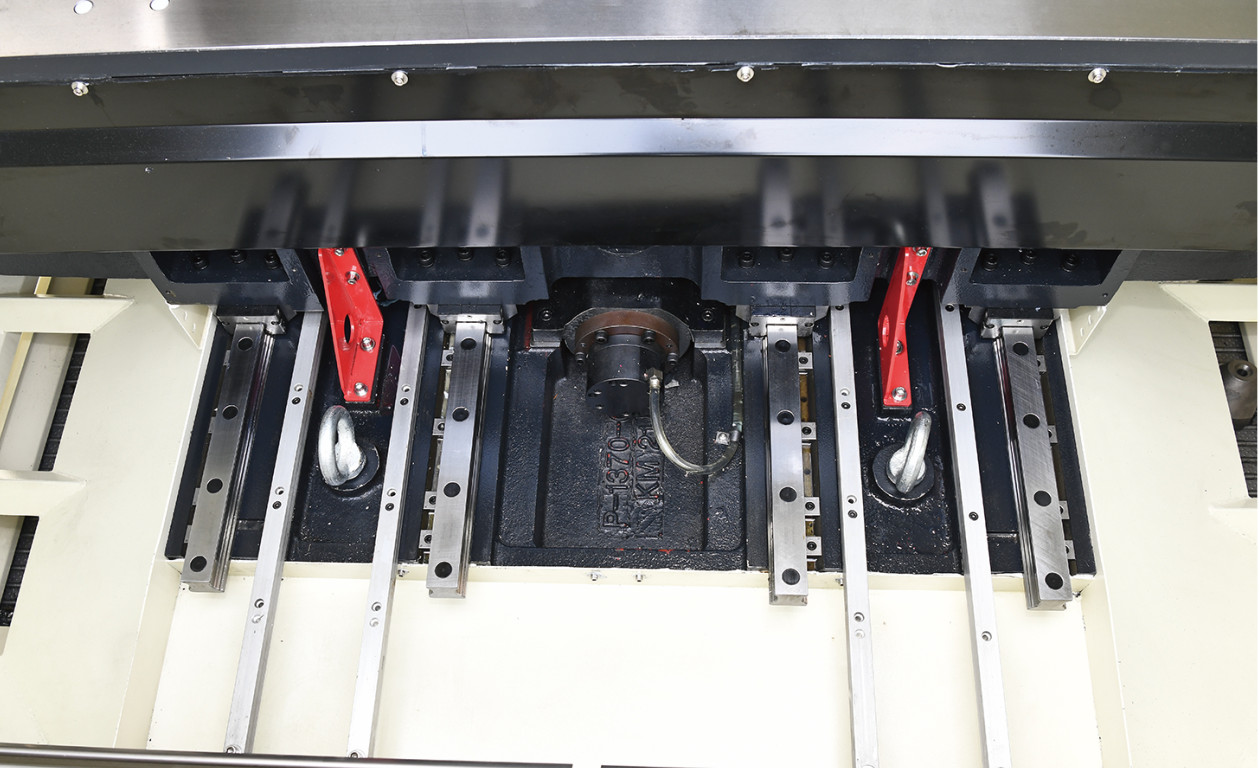

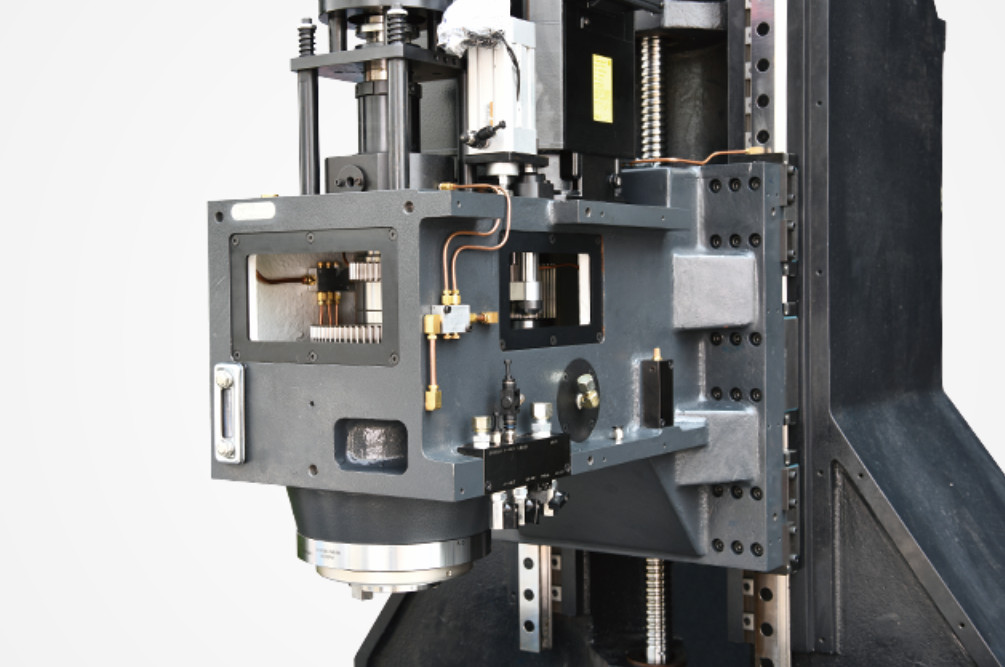

◎ Gearbox with 4x High-Torque Spindle Box

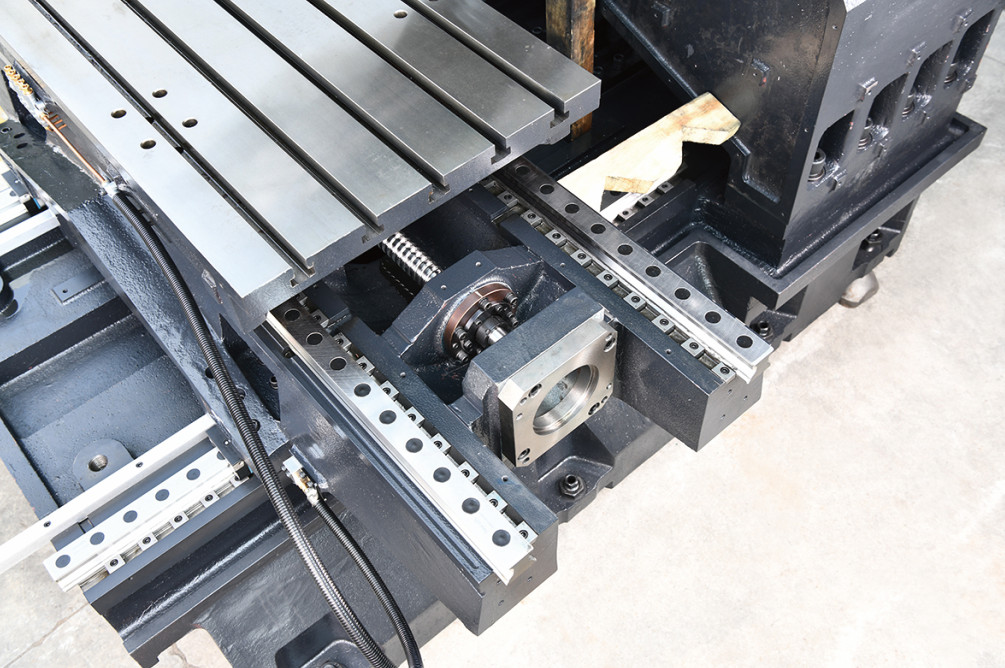

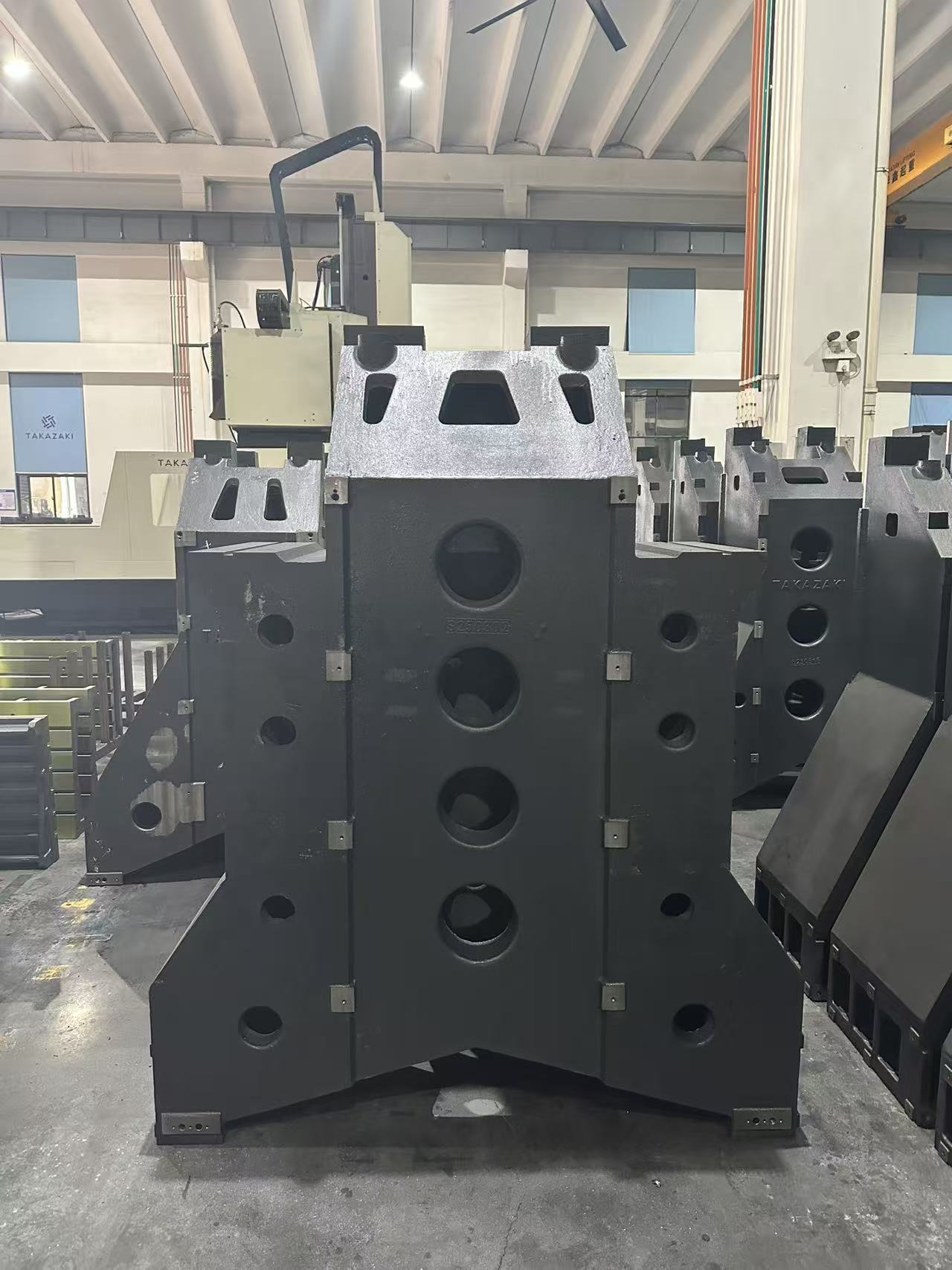

◎ Solid frame Design
◎ 14-inch High-Responsive Touchscreen Control System
◎ Standard Dual Chain Rear Chip Evacuation for Easier Chip Evacuation

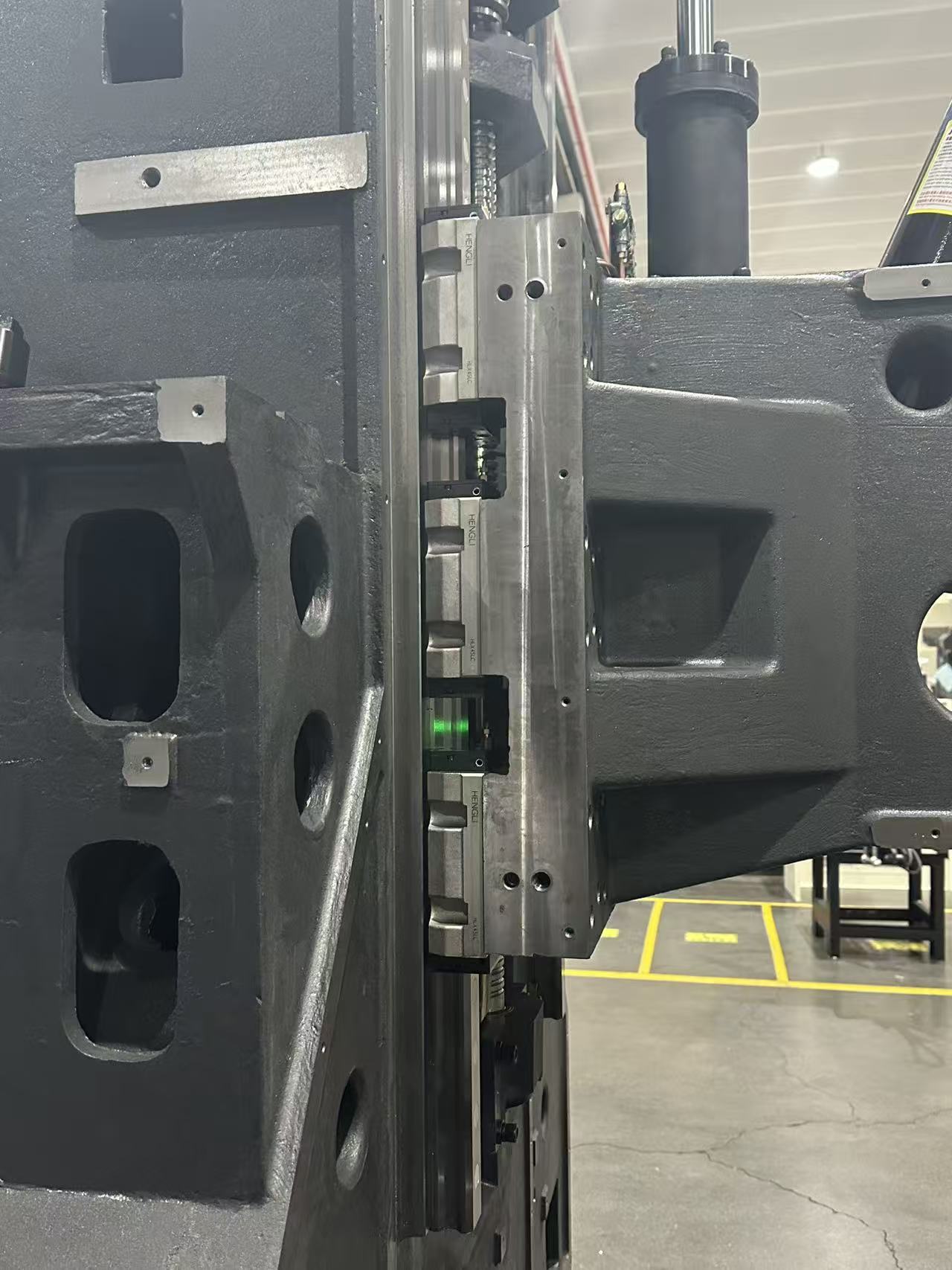

◎ Includes Z-Axis Balancing System

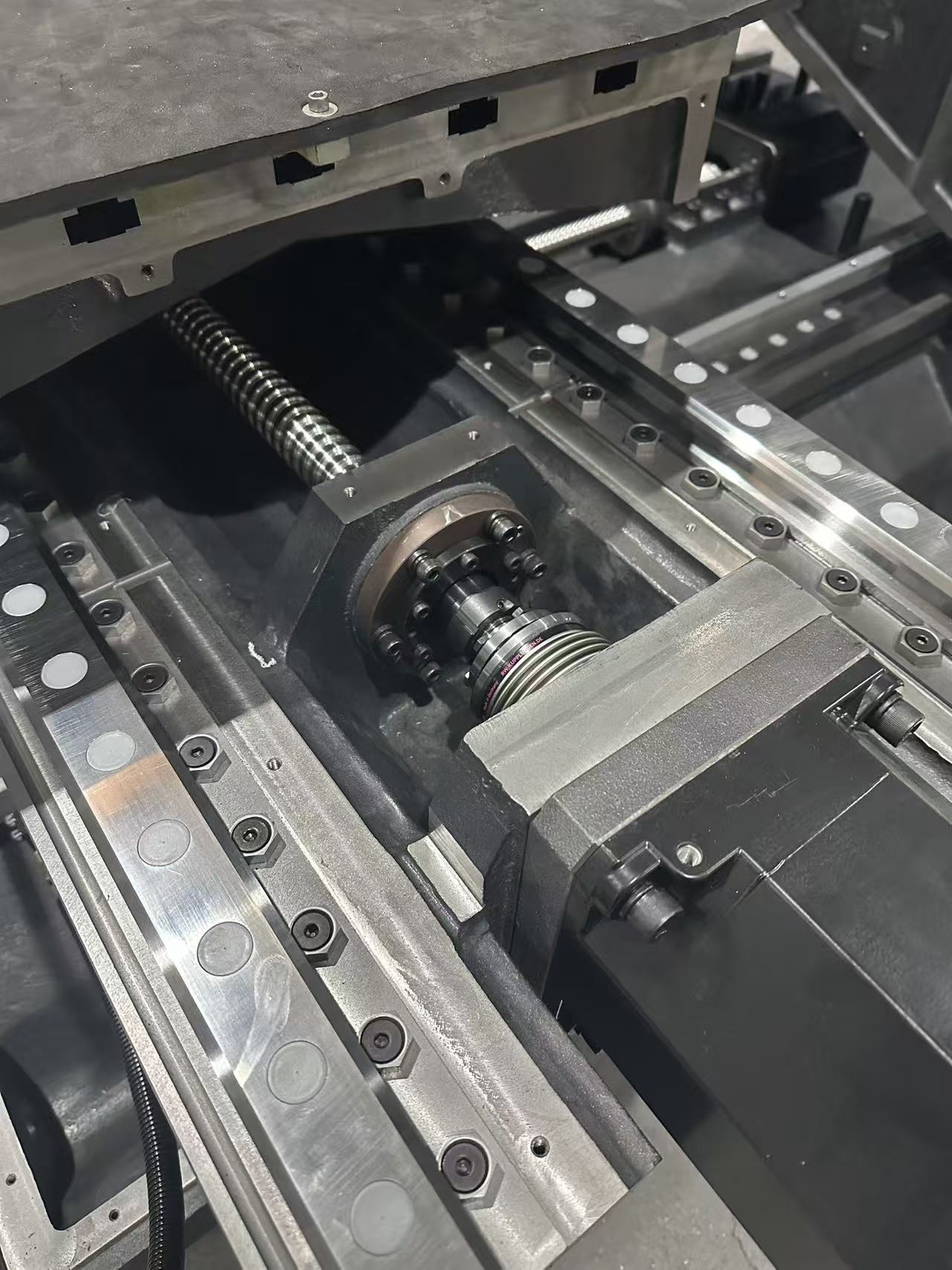

◎ High-Torque Servo Motors on All Three Axes
| Item | Unit | P-1055 | P-1160 | P-1160s | P-1370 | P-1690 | P-1890 |
| Worktable Dimension | mm | 1300*550 | 1300*600 | 1300*600 | 1500*650 | 1800*900 | 2000*900 |
| Processing Range | mm | 1000*550 | 1100*600 | 1100*600 | 1300*700 | 1600*900 | 1800*900 |
| T-slot Dimension (Center Distance * Slot Width * Number of Slots) | mm | 100*18*5 | 100*18*5 | 100*18*5 | 100*18*5 | 120*22*7 | 164*22*5 |
| Maximum Worktable Load Capacity | kg | 1200 | 1200 | 800 | 1600 | 2000 | 2500 |
| X/Y/Z Axis Travel | mm | 1000/550/600 | 1100/600/600 | 100/600/600 (Possible Typo) | 1300/700/700 | 1600/900/800 | 1800/900/800 |
| Distance from Spindle Nose to Worktable Surface | mm | 150-750 (300-900) | 150-750 (300-900) | 150-750 (350-950) | 150-850 (300-1000) | 150-950 | 150-950 |
| Distance from Spindle Center to Z-axis Shield Surface | mm | 560 | 605 | 655 | 710 | 920 | 920 |
| Spindle Taper | BT40/BT50 | BT40/BT50 | BT50 | BT50 | BT50 | BT50 | |
| Spindle Speed | rpm | 8000 (6000) | 8000 (6000) | 6000 | 6000 | 6000 | 6000 |
| Spindle Drive Mode | Belt Type (Gear Type 1:4) | Belt Type (Direct Drive Type) | Belt Type | Belt Type (Gear Type 1:4) | Belt Type (Gear Type 1:4) | Belt Type (Gear Type 1:4) | |
| Spindle Motor (FANUC System) | KW | 15-18.5 (18.5-22) | 15-18.5 (18.5-22) | Rated 15kw | 15-18.5 (18.5-22) | 18.5-22 (22-26) | 22-26 |
| Continuous Rated Torque | N.m | 95.5 (118) | 95.5 (118) | Continuous Rated Torque: 143 N.m | 95.5 (118) | 118 (140) | 140 (191) |
| Cutting Feed Rate (X/Y/Z Axis) | m/min | 1~16 | 1~16 | 1~16 | 1~16 | 1~16 | 1~16 |
| Rapid Feed Rate (X/Y/Z Axis) | m/min | 30/30/30 | 36/36/36 | 36/36/36 | 30/30/24 | 24/24/24 | 24/24/24 |
| Positioning Accuracy | mm | ±0.005 | ±0.005 | ±0.008 | ±0.005 | ±0.005 | ±0.005 |
| Repeat Positioning Accuracy | mm | ±0.003 | ±0.003 | ±0.005 | ±0.003 | ±0.003 | ±0.003 |
| Number of Tools | T | 24 | 24 | 24 (30) | 24 | 24 | 24 |
| Tool Change Method | Disc Tool Arm Type | Disc Tool Arm Type | Random | Disc Tool Arm Type | Disc Tool Arm Type | Disc Tool Arm Type | |
| Maximum Tool Diameter | mm | Φ80 (Φ150 with Adjacent Empty Slot) | Φ80 (Φ150 with Adjacent Empty Slot) | Φ110 (Φ200 with Adjacent Empty Slot) | Φ125 (Φ200 with Adjacent Empty Slot) | Φ125 (Φ200 with Adjacent Empty Slot) | Φ125 (Φ200 with Adjacent Empty Slot) |
| Maximum Tool Length | mm | 300 | 300 | 350 | 350 | 350 | 350 |
| Maximum Tool Weight | kg | 8 | 8 | 15 (Tool Unbalance) | 15 | 15 | 15 |
| Tool Holder Type | BT40 | BT40 | BT50 | BT50 | BT50 | ||
| Tool Change Time (T-T) | s | 2.5 | 2.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Power Requirement | Kva | 30 | 30 | 35 | 40 | 40 | 50 |
| Machine Weight | kg | 7800 | 7500 | 10000 | 11000 | 13500 | 16500 |
| Floor Space (Length*Width*Height - Including Water Tank) | mm | 4250*2580*3200 | 4170*2550*3000 | 3010*2670*3250 | 5050*2930*3600 | 6100*4000*3850 | 6500*4100*3900 |
