Heavy-Duty Horizontal Machining Series: HA63 HA80
Product Features
1.High-Performance System with Optimized Performance
2.Perfectly Optimized Mechanical and System Performance
3.Enables Efficient High-Precision Machining
4.Fanuc 10.4-inch Large Screen (OP 15-inch Large Screen)
5.Large Viewing Window for Convenient Product Visibility
6.Observe Machining Status and Results from Multiple Angles

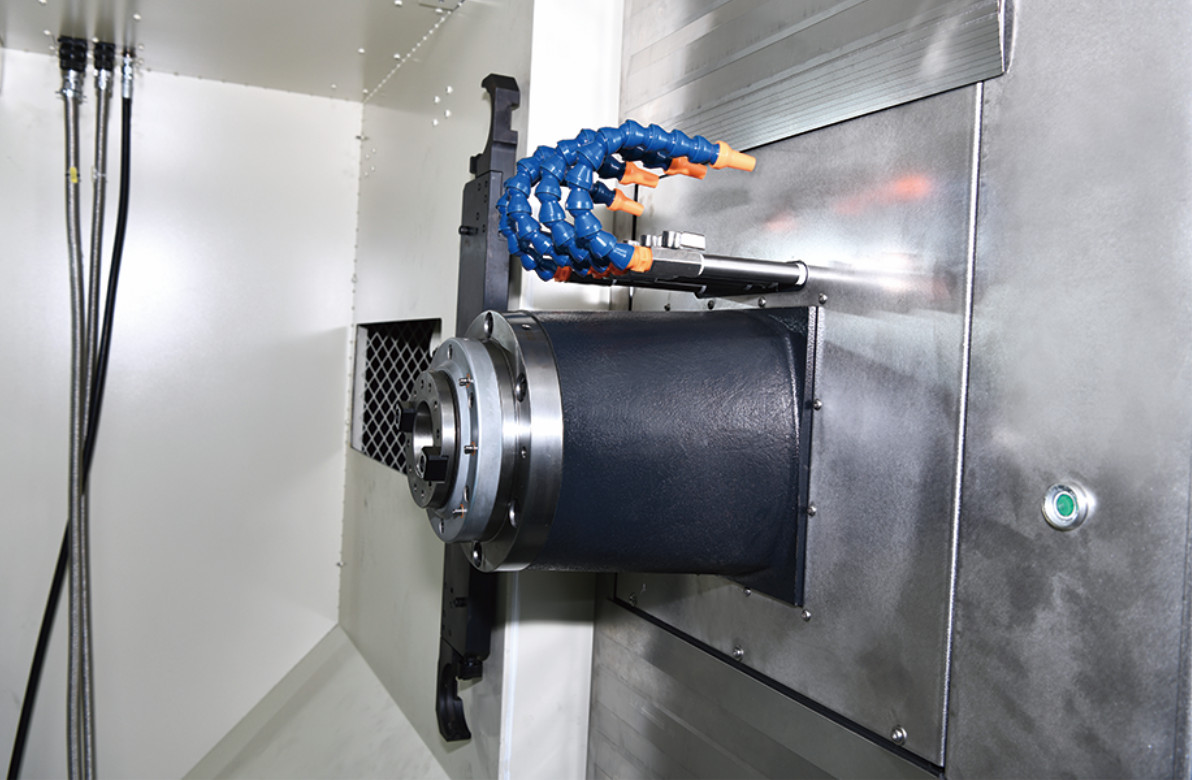

7.High-Precision High-Rigidity Pusen Spindle
8.Φ190 Flange-Mounted Belt Spindle

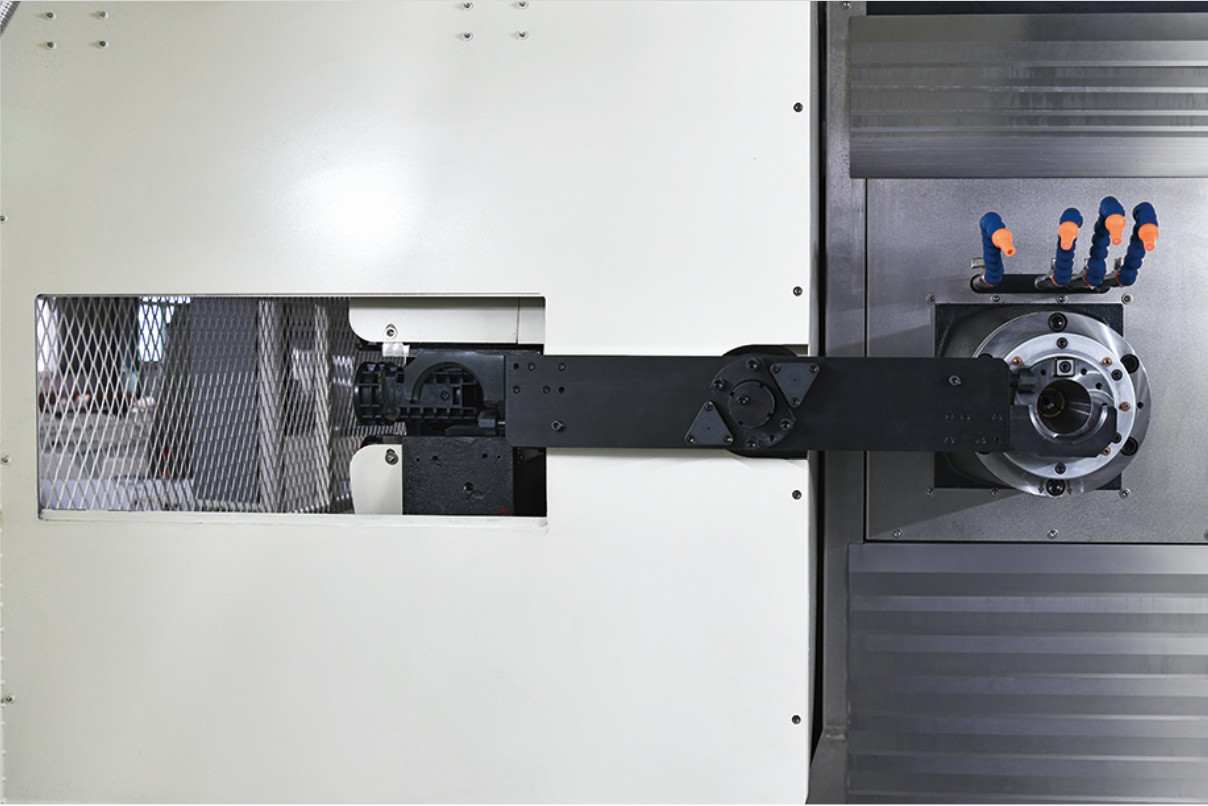

9.Standard 4-Hole Ring Spindle and Air Curtain Protection

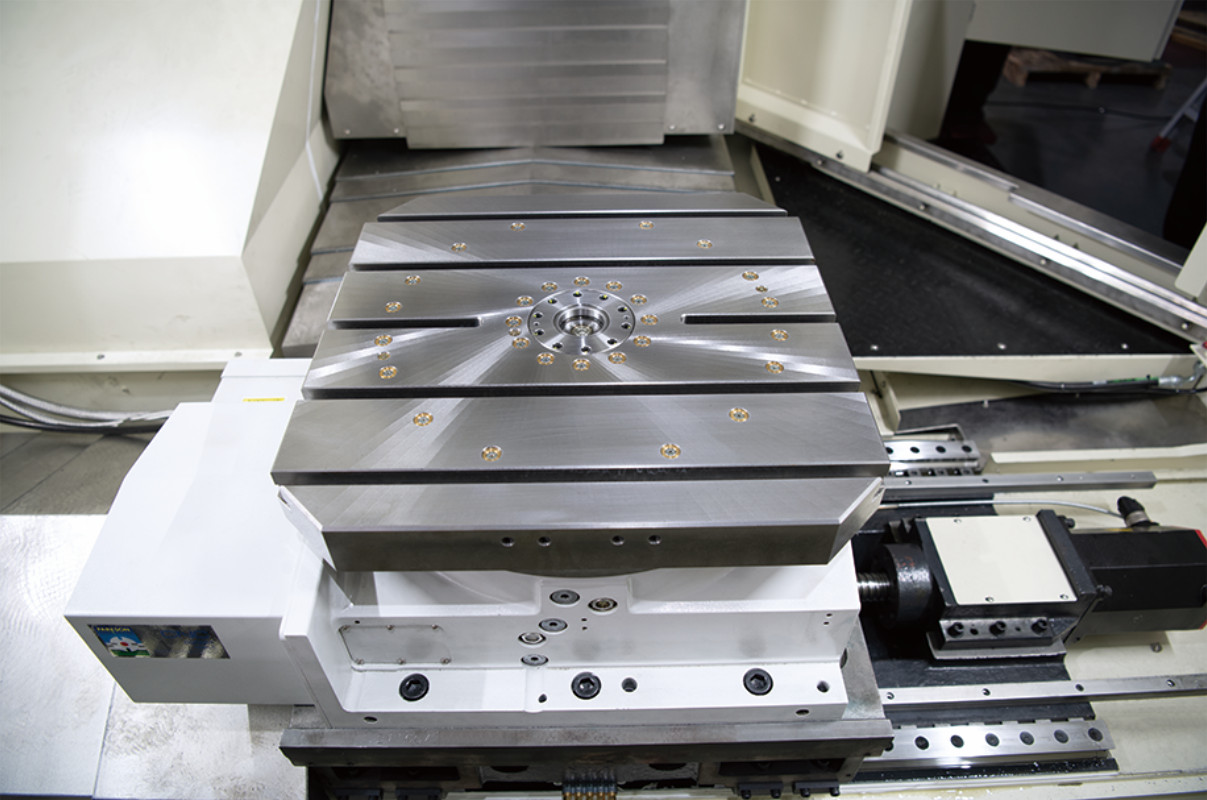

| Item | Unit | HA63 | HA80 | |
| Worktable | Worktable Dimension (Length X Width) | mm | 630*630 | 800*800 |
| T-slot (Number of Slots X Slot Width X Slot Pitch) | mm | 5*18*100 | 7*22*100 | |
| Maximum Worktable Load Capacity | kg | 1200 | 2500 | |
| Travel | X-axis Travel (Worktable Left-Right Travel) | mm | 1000 | 1250 |
| Y-axis Travel (Worktable Front-Back Travel) | mm | 800 | 1000 | |
| Z-axis Travel (Spindle Up-Down Travel) | mm | 800 | 1000 | |
| Distance from Spindle Nose to Worktable Center | mm | 195-995 | 250-1250 | |
| Distance from Spindle Center to Worktable Surface | mm | 75-875 | 75-1075 | |
| Spindle | Spindle Taper Hole | 7:24 Taper | 7:24 Taper | |
| Drive Mode | Belt Type (Gear Type) | Belt Type (Gear Type) | ||
| Spindle Speed | rpm | 6000 | 6000 | |
| Spindle Motor Power | KW | 22-26 | 22-26 | |
| Feed | X/Y/Z Axis Rapid Traverse Speed | mm/min | 18000 | 18000 |
| X/Y/Z Axis Feed Speed | mm/min | 1-10000 | 1-10000 | |
| Workpiece | Maximum Workpiece Height | mm | 1300 | 1500 |
| Maximum Workpiece Diameter | mm | 1250 | 1450 | |
| Tool Magazine | Tool Holder Type | BT50 | BT50 | |
| Tool Magazine Capacity | PCS | 32 | 32 | |
| Tool Magazine Type | Horizontal Arm Type | Horizontal Arm Type | ||
| Tool Change Time | s | 3.5 | 3.5 | |
| Maximum Tool Diameter | mm | Φ125 (Φ250 with Adjacent Empty Slot) | Φ125 (Φ250 with Adjacent Empty Slot) | |
| Maximum Tool Length | mm | 350 | 500 | |
| Maximum Tool Weight | kg | 10 (15 for Unbalanced Tool) | 10 (15 for Unbalanced Tool) | |
| Accuracy | Linear Axis Positioning Accuracy | mm | 0.008 | 0.008 |
| Linear Axis Repeat Positioning Accuracy | mm | 0.005 | 0.005 | |
| Rotary Axis Indexing Accuracy | arc.sec | 10 | 10 | |
| Rotary Axis Repeat Positioning Accuracy | arc.sec | 2 | 2 | |
| Control System | FANUC series Oi-MF (PLUS) | FANUC series Oi-MF (PLUS) | ||
| Others | Power Capacity | Kva | 40 | 50 |
| Machine Dimension (Length*Width*Height) | mm | 5200*4000*3350 | 5600*4400*3600 | |
| Machine Weight | kg | 13000 | 17000 |
