Gantry milling machine series

高崎智能

下载

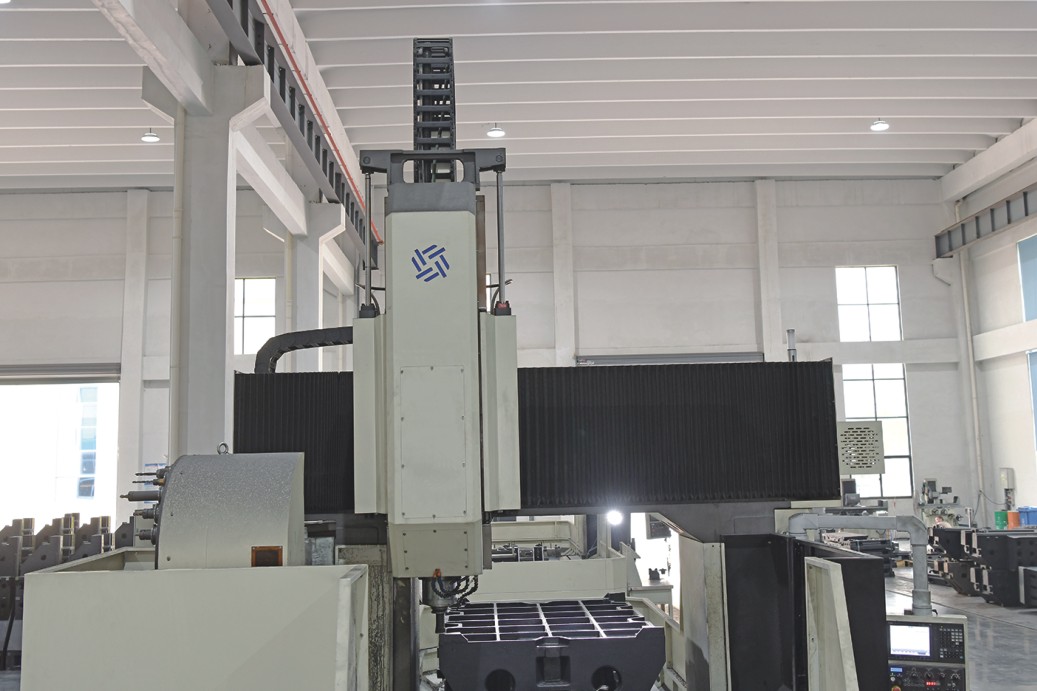

Gantry Milling Machine Series: GMT2217 GMT3018 GMT4022

Features

Quenched guideways with four-sided tightening constraints

Strongly reinforced machine rigidity design delivers powerful cutting capabilities and stable precision

BBT50-Φ200 high-rigidity spindle with six imported large steel ball bearings ensures excellent cutting performance

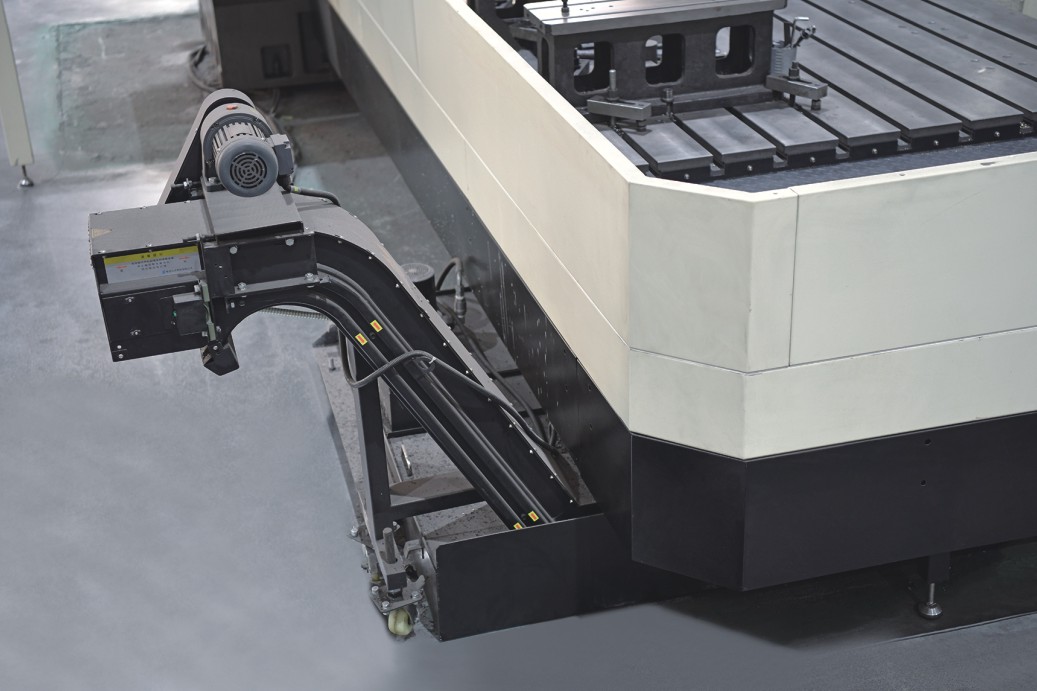

Twin screws and front chip conveyor provide convenient chip removal

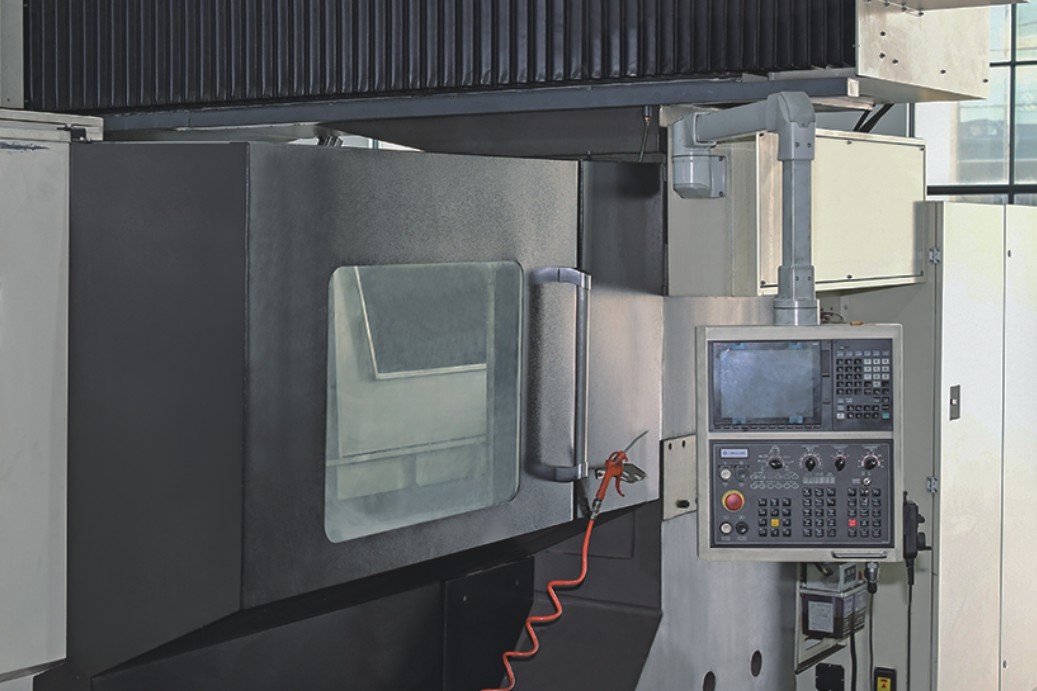

Optional automatic door and center water discharge function

Dual Z-axis power balance bar provides longer-term stable Z-axis output

	Item	Unit	GMT2217	GMT3018	GMT4022
Worktable	Worktable Dimension	mm	2000*1300	3000*1600	4000*2000
	T-slot Dimension (Center Distance * Slot Width * Number of Slots)	mm	722170	922180	928200
	Maximum Worktable Load Capacity	kg	8000	12000	18000
Travel	X/Y/Z Axis Travel	mm	2200/1650/800	3000/2000/960	4000/2200/1000
Travel	Distance from Spindle Nose to Worktable	mm	250-1050	140-1140	280-1280
Spindle	Spindle Taper Hole		BT50	BT50	BT50
	Spindle Speed	rpm	6000	6000	6000
	Spindle Drive Mode		Belt Type	Belt Type	Belt Type
Spindle Motor	Spindle Motor (FANUC System)	KW	18.5	22.0	22.0
Spindle Motor	Rated Torque	Nm	143	220	220
Feed Rate	Cutting Feed Rate (X/Y/Z Axis)	m/min	10	10	10
Feed Rate	Rapid Feed Rate (X/Y/Z)	m/min	12	12	12
Accuracy	Positioning Accuracy	mm	±0.025	±0.025	±0.025
Accuracy	Repeat Positioning Accuracy	mm	±0.015	±0.015	±0.015
Automatic Tool Changer & Others	Number of Tools	T	40	40	40
	Power Requirement	Kva	40	45	55
	Chip Removal Method		Dual Screw Chain Plate	Dual Screw Chain Plate	Dual Screw Chain Plate
	Machine Weight	kg	22000	27000	42000
	Floor Space (LengthWidthHeight - Including Water Tank)	mm	460066804500	480073005100	5400108005600
