Drilling and Tapping Machining Center Series: T-600 T-700 V8F
Product Features

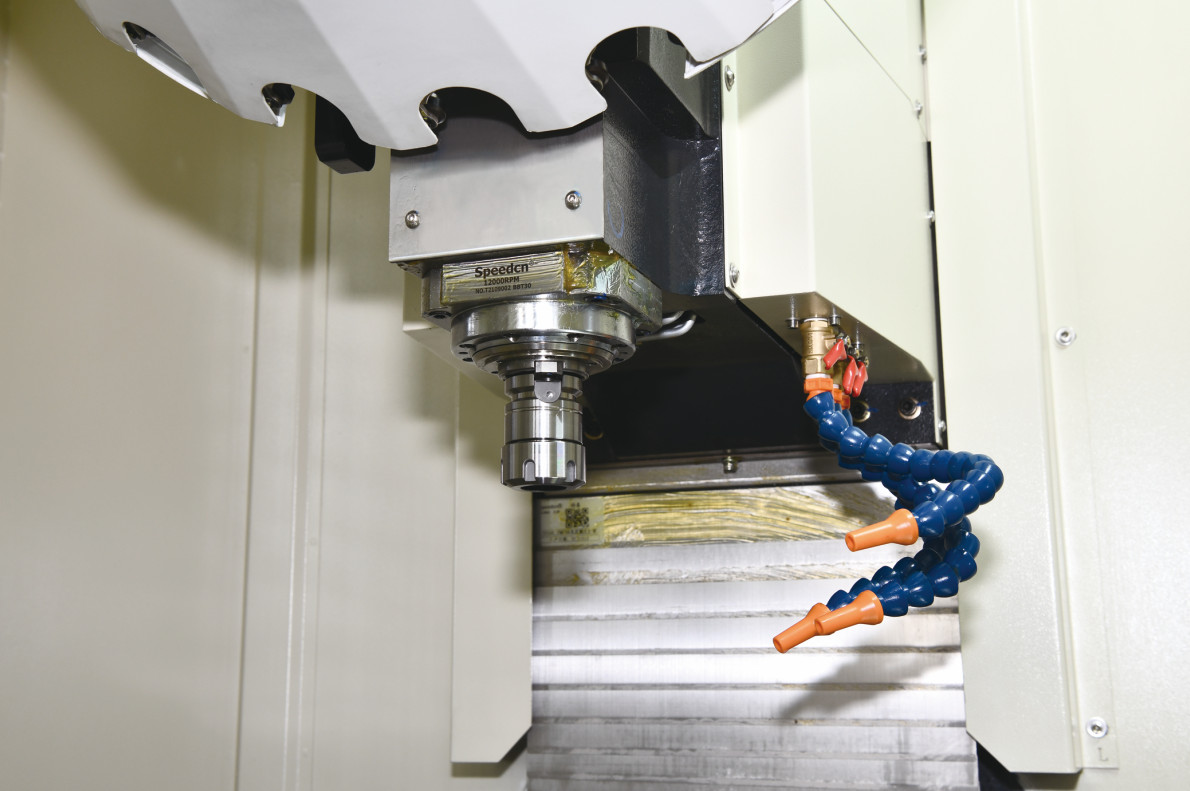

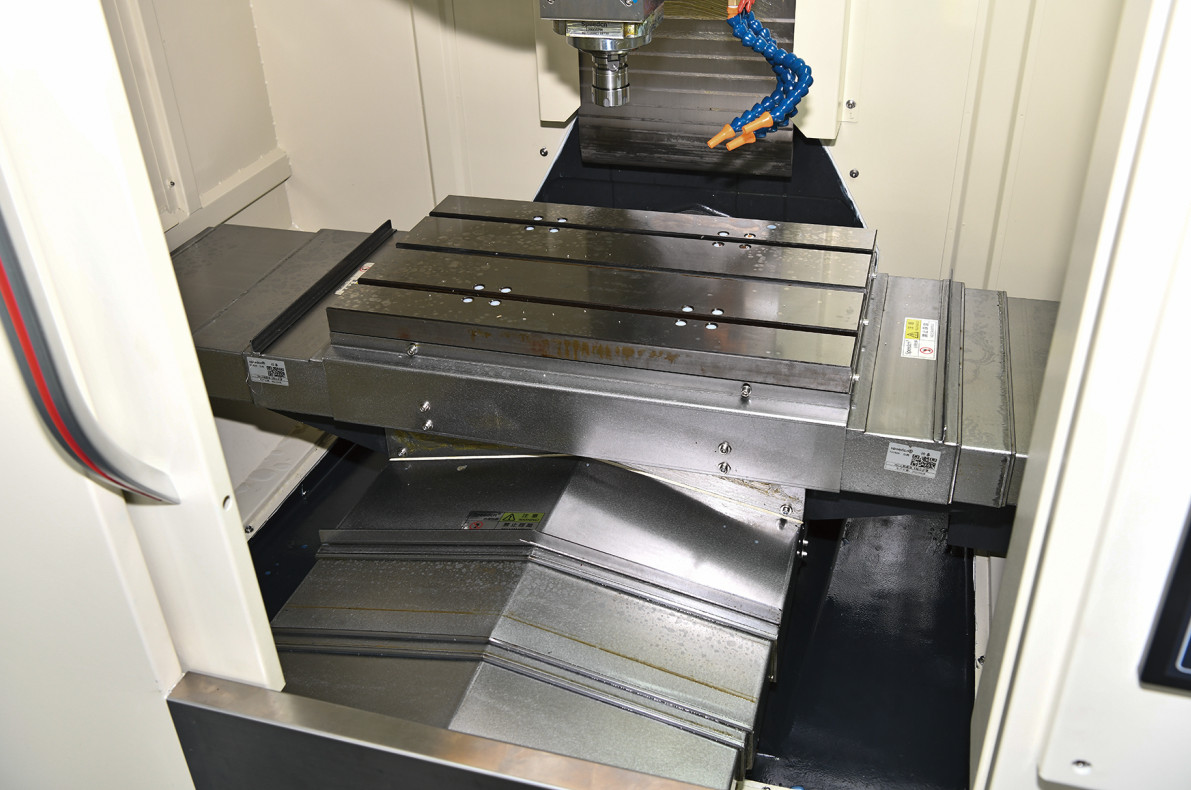

The new-generation oi-MF (PLUS) series features a touchscreen design for improved operability simplifying display and key input. The X-axis's multi-piece telescopic guard design occupies a smaller footprint. The Y-axis's wide-angle guard ensures smooth chip evacuation and fluid guidance. The Z-axis' armor-like guard provides enhanced sealing and reliable protection. Z-axis 2.2G (S500 load test)
Standard torque 35Nm (5.5kW)
High torque 72Nm (7.5kW)
| Item | Unit | T-600 | T-700 | V8F | |
| Worktable | Worktable Dimension | mm | 700*420 | 800*420 | 1100*430 |
| Processing Range | mm | 600*450 | 700*450 | 800*450 | |
| T-slot Dimension (Center Distance * Slot Width * Number of Slots) | mm | 14T*3*125 | 14T*3*125 | 125*18*3 | |
| Maximum Worktable Load Capacity | kg | 250 | 250 | 500 | |
| Travel | X/Y/Z Axis Travel | mm | 600/450/330 | 700/450/330 | 800/450/485 |
| Distance from Spindle Nose to Worktable Surface | mm | 150-480 | 150-480 | 150-645 | |
| Distance from Spindle Center to Column Rail Surface | mm | 464 | 464 | 501 | |
| Spindle | Spindle Taper Hole | BT30 (Φ110) | BT30 (Φ110) | BT40 | |
| Spindle Speed | rpm | 12000 | 12000 | 12000 | |
| Spindle Drive Mode | Direct Drive | Direct Drive | Direct Drive | ||
| Spindle Motor | Spindle Motor (FANUC System) | KW | 5.5 | 5.5 | 11 |
| Torque | Nm | 35 | 35 | 52.5 | |
| Feed Rate | Cutting Feed Rate (X/Y/Z Axis) | m/min | 1-12 | 1-12 | 1-10 |
| Rapid Traverse (X/Y/Z) | m/min | 48/48/48 | 48/48/48 | 48/48/48 | |
| Accuracy | Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 |
| Repeat Positioning Accuracy | mm | ±0.005 | ±0.005 | ±0.005 | |

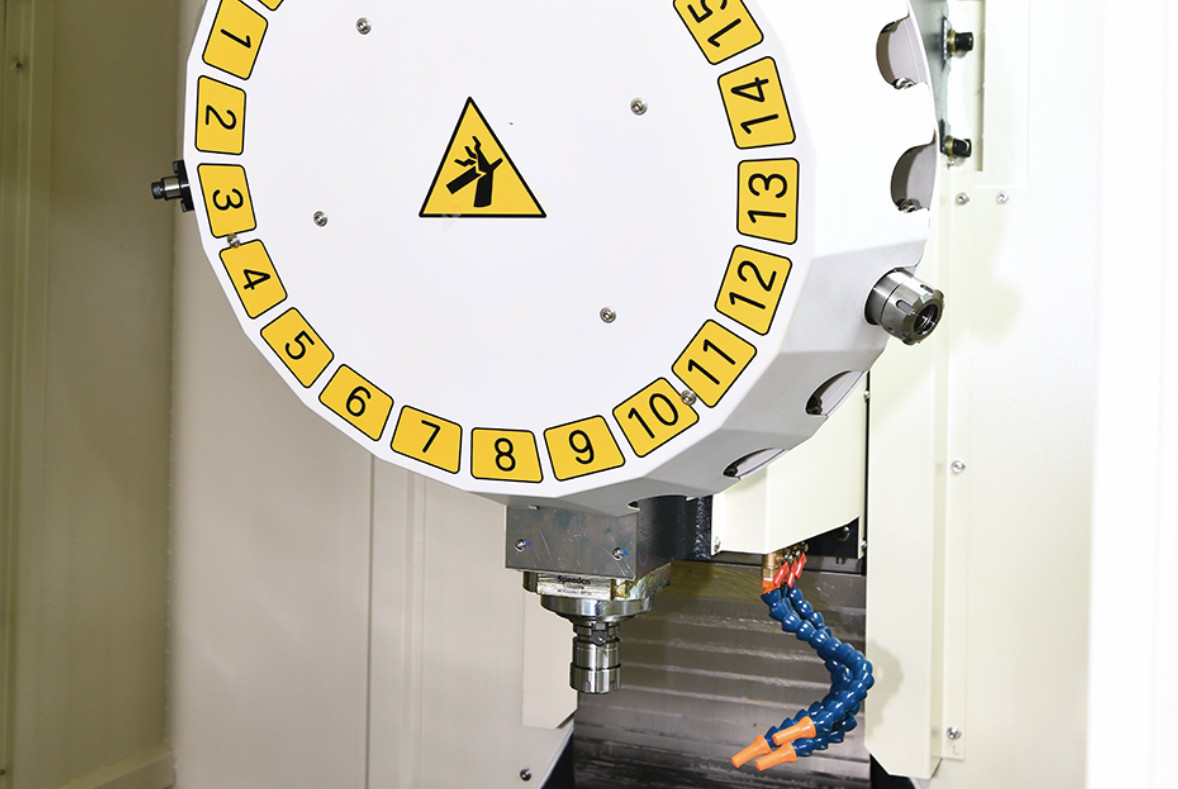

| Automatic Tool Changer | Number of Tools | T | 21 | 21 | 20 |
| Tool Change Method | Arm Type | Arm Type | Arm Type | ||
| Maximum Tool Diameter | mm | 60 (80 with Adjacent Empty Slot) | 60 (80 with Adjacent Empty Slot) | Φ100 | |
| Maximum Tool Length | mm | 250 | 250 | 250 | |
| Maximum Tool Weight | kg | 3 (Unbalanced) / 10 (Full Load) | 3 (Unbalanced) / 10 (Full Load) | 5 | |
| Tool Holder Type | BT30 | BT30 | BT40 | ||
| Tool Change Time (T-T) | s | 1.35 | 1.35 | 1.5 | |
| Others | Power Requirement | Kva | 10 | 10 | 15 |
| Chip Removal Method | Rear Chip Flushing | Rear Chip Flushing | Rear Chip Flushing | ||
| Machine Weight (Approx.) | kg | 2800 | 3000 | 4230 | |
| Floor Space (Length*Width*Height - Including Water Tank) | mm | 1750*2451*2500 | 1880*2351*2500 | 2240*2346*2730 |
